    51.2V 200Ah Lithium Battery Waterproof Powerwall Price

      Wall mounted battery&compact design, ease of installation
      Compafible with multiple inverters, multiple communication interfaces RS232,RS485,CAN
      IP65 Protection, outdoor application
      Use of parallel connection; from 2 to 10 modules
      High energy density, 110Wh/kg
      Multiple protection, LiFePO4 material, safe and long life

    Share:

    Download Inquiry
    ModelTG-WB-10.24kW
    Nominal Voltage51.2V
    Cell model/Configuration3.2V 100Ah(ANC)/16S2P
    Capacity(AH)200AH
    Rated Energy(KWH)10.24KWH
    Usable Energy(KWH)9.2KWH
    Max. Charge/Discharge Current(A)100A /100A
    Voltage Range(Vdc)48-56.5V
    ScalabilityUp to 10 parallel
    CommunieationRS232-PC,RS485(B)-BAT RS485(A)-Inverter,Canbus-Inverter
    Cycle Life25±2°C，0.5C/0.5C，80% DOD ≥6000
    Design Life≥10Years(25℃)
    Weight(Approx)(KG)96KG
    Dimension (W/D/H)(mm)485*690*186(226 Including hanger)mm
    Installation ModeWall mounted
    IP GradeIP65
    Safety(Pack)UN38.3,MSDS,IEC62619(CB),CE-EMC,UL1973
    Safety(Cell)UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
    ProtectionBMS, Breaker
    Operating Temperature(℃)Charge:-10℃~50℃；Discharge：-20℃-50℃
    Altitude (m)≤2000
    Humidity≤95%(Non-condensing）

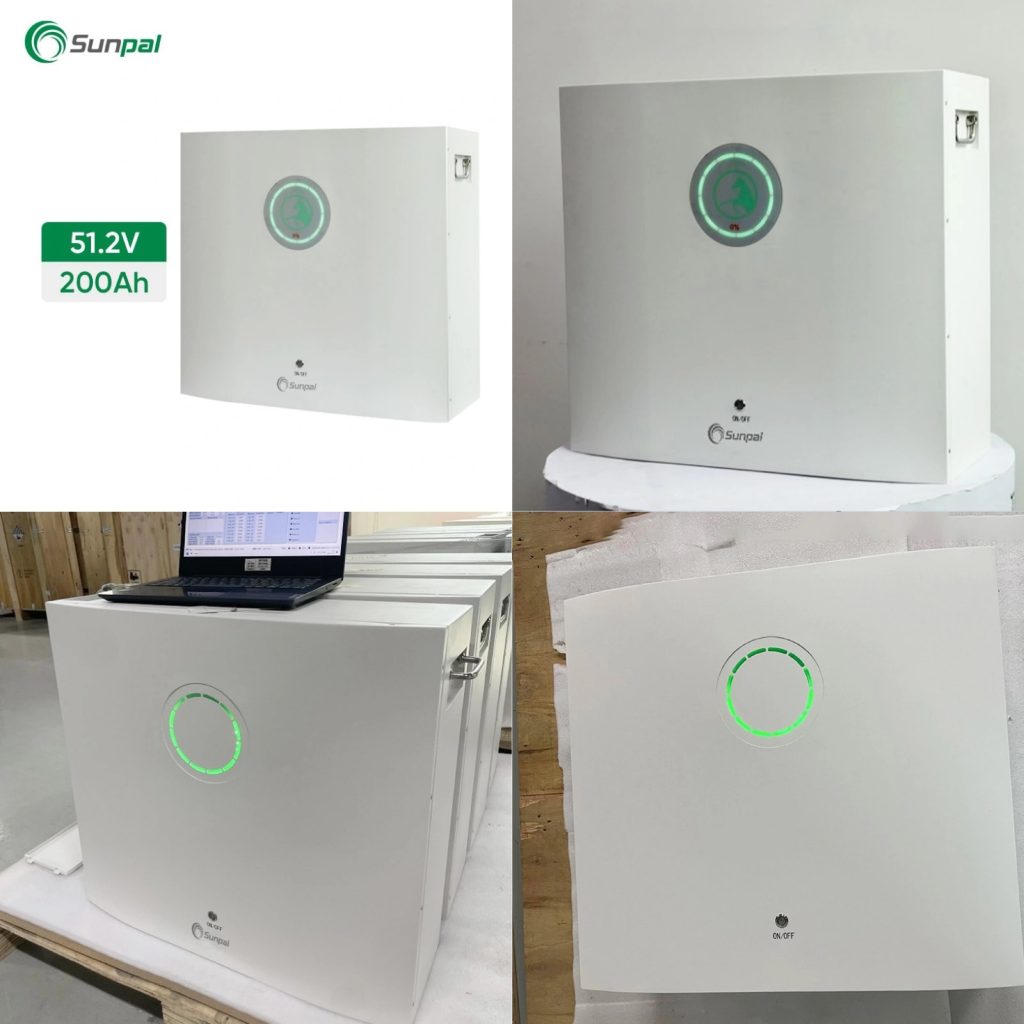

    Lithium Battery 10.24KWh Outdoor Use

    Q :

    What is a Waterproof LiFePO4 battery?

    A :

    A Waterproof LiFePO4 Battery is a type of lithium iron phosphate (LiFePO4) battery designed with enhanced protection against water and moisture ingress, making it suitable for use in harsh or outdoor environments.

    Q :

    How long will a 10kWh lithium battery last before needing replacement?

    A :

    A 10kWh lithium battery with a rated cycle life of ≥6,000 cycles at 80% depth of discharge (DOD) and a design lifespan of 15 years will typically last between 10–15 years before needing replacement, depending on usage patterns and environmental conditions.

    Q :

    Can a 10 kWh battery provide enough power for an average house?

    A :

    A 10 kWh battery can cover partial daily needs for an average household (which typically uses 20–30 kWh/day), but it’s usually not enough for full independence unless paired with solar panels or used for critical loads only (e.g., fridge, lights, and Wi-Fi for ~12–24 hours). For complete off-grid power, most homes need 20+ kWh of storage or supplemental generation.

    Q :

    Is it possible to integrate lithium batteries into an already installed solar power system?

    A :

    Yes, it is usually possible to integrate lithium batteries (e.g., LiFePO4) into an existing solar power system, but success depends on compatibility, system design, and potential upgrades.

    Q :

    How many hours does it take to fully charge a 10kWh battery from the grid?

    A :

    The time required to fully charge a 10kWh battery from the grid depends primarily on the charger's power rating (kW) and the battery's charging efficiency. e.g. A 5kW solar inverter with grid backup usually charges a 10kWh battery in ~2 hours at full power.
