Introduction: The Need for Advanced Solar Storage Solutions

The demand for renewable energy is accelerating, with solar power at the forefront of this global transition. As one of the most abundant and clean energy sources, solar energy promises long-term sustainability. Yet, its intermittent nature—limited to daylight hours—poses a critical challenge: reliable storage. This is driving the rise of advanced technologies like flow batteries for solar storage, which offer a flexible, long-duration solution to manage surplus energy and maintain grid stability.

While lithium-ion batteries have traditionally dominated the market, the growing complexity of solar applications has sparked interest in scalable alternatives. Today, flow batteries for solar storage are emerging as a powerful option for commercial systems, microgrids, and utility-scale projects. In this article, we explore how these systems outperform conventional lithium solutions in scalability, safety, and cycle life—making them an essential component in the next generation of solar storage.

What Are Flow Batteries? A Revolution in Solar Storage

Flow batteries are liquid-based energy storage systems that store electrical energy in electrolytes—liquid solutions that flow through the system. Unlike solid-state batteries, which store energy in a fixed material, flow batteries can scale more effectively by increasing the size of the electrolyte storage tanks.

Flow batteries are typically categorized by their electrolyte chemistry. The most well-known type is the vanadium redox flow battery (VRFB), but there are other types as well, including zinc-bromine and iron-chromium flow batteries. The major advantage of these systems over lithium-ion batteries is their scalability. As the energy needs grow, the size of the electrolyte tanks can be increased to meet demand, allowing for tailored solar storage solutions.

Key Advantages of Flow Batteries Over Lithium Systems

1. Longer Cycle Life: 20,000+ Cycles for Extended Use

One of the most significant advantages of flow batteries is their extended cycle life. With up to 20,000 charge and discharge cycles, flow batteries outlast traditional lithium-ion batteries, which typically provide between 3,000 and 7,000 cycles. This means flow batteries can last up to 10 times longer, reducing the need for frequent replacements and making them ideal for long-term energy storage in commercial and industrial solar systems.

The longer lifespan makes flow batteries more cost-effective over time, especially for utility-scale solar plants where longevity and reliability are paramount.

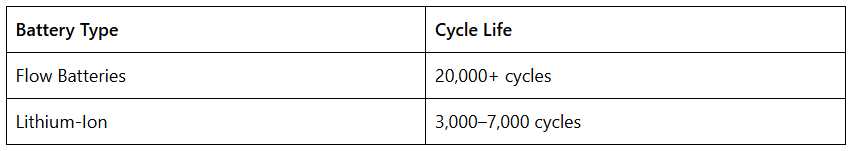

Chart 1: Cycle Life Comparison

2. Scalability: Perfect for Growing Solar Needs

One of the most compelling features of flow batteries is their scalability. As opposed to lithium-ion systems, which require multiple modules to increase capacity, flow batteries can be scaled by adjusting the size of the electrolyte storage tanks. This provides flexibility for both small-scale and large-scale solar energy projects.

Whether you’re looking to store solar energy for residential use or for a commercial solar power plant, flow batteries can be tailored to meet your specific energy needs. The scalability makes them ideal for utility-scale solar storage, microgrids, and solar-powered commercial buildings.

3. Thermal Safety: A Major Advantage Over Lithium-Ion

Flow batteries are non-flammable, which is a significant advantage over lithium-ion batteries, which can be prone to overheating and fires if damaged or improperly handled. The liquid electrolyte in flow batteries ensures that the system remains stable, even in extreme conditions. This makes flow batteries ideal for large solar installations and other high-risk environments where safety is a priority.

Additionally, the thermal stability of flow batteries makes them suitable for regions with extreme temperatures, both hot and cold. In comparison, lithium-ion batteries require active cooling systems to maintain safe operation, which increases complexity and costs.

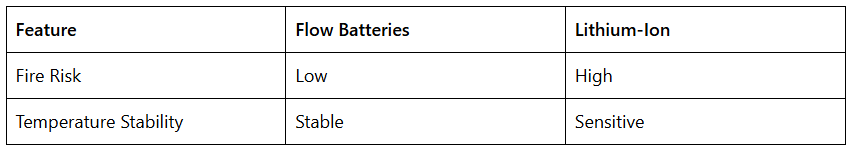

Chart 2: Safety Comparison

4. Cost-Effectiveness: Better ROI for Large-Scale Systems

While flow batteries may require a higher initial investment compared to lithium-ion batteries, their low maintenance costs, extended lifespan, and scalability make them more cost-effective in the long run. The ability to scale the system without purchasing additional modules reduces capital expenses, and the long life cycle of flow batteries means less frequent replacements.

Cost-per-kWh for flow batteries is also expected to drop as manufacturing processes improve and economies of scale are achieved. For large-scale solar installations, this means greater returns on investment (ROI) and a more sustainable energy storage solution.

Challenges Facing Flow Batteries

Despite their many advantages, flow batteries are not without their challenges. Some of the key barriers to adoption include:

• Higher Initial Capital Cost: Flow batteries currently have a higher upfront cost compared to lithium-ion batteries. However, this is expected to decrease over time as the technology matures and production scales up.
• Energy Density: Flow batteries generally have lower energy density compared to lithium-ion batteries. This means they require larger storage tanks to store the same amount of energy, which could be a limitation in space-constrained environments.
• Complexity: Flow batteries are relatively complex compared to lithium-ion systems, which are simpler to integrate and maintain.

However, research and development efforts in flow battery technologies are ongoing, with innovations aimed at addressing these challenges. As technology progresses, flow batteries will become more efficient, cost-effective, and viable for a broader range of applications.

Best Use Cases for Flow Batteries in Solar Applications

Flow batteries are particularly well-suited for large-scale solar energy storage, especially in situations where energy must be stored for extended periods. Some of the most ideal use cases include:

1. Commercial Solar Installations

For commercial solar applications, flow batteries provide a reliable backup during cloudy days or nighttime, ensuring businesses have access to energy around the clock. They are also well-suited for applications that require long-duration storage to meet fluctuating energy demand.

2. Utility-Scale Solar Farms

Flow batteries excel in utility-scale solar farms where large amounts of energy need to be stored over extended periods. Their scalability allows for greater flexibility in terms of storage capacity, and their long cycle life ensures a steady supply of stored energy for grid distribution.

3. Off-Grid Solar Systems

For remote areas with limited access to the electricity grid, flow batteries provide a reliable and cost-effective energy storage solution. By integrating solar panels with flow batteries, off-grid communities can ensure a continuous and sustainable supply of electricity.

4. Microgrids

In microgrids, flow batteries can store energy from solar panels to ensure a consistent energy supply, even in the event of a power outage. The thermal stability of flow batteries makes them a safe and reliable choice for microgrid applications.

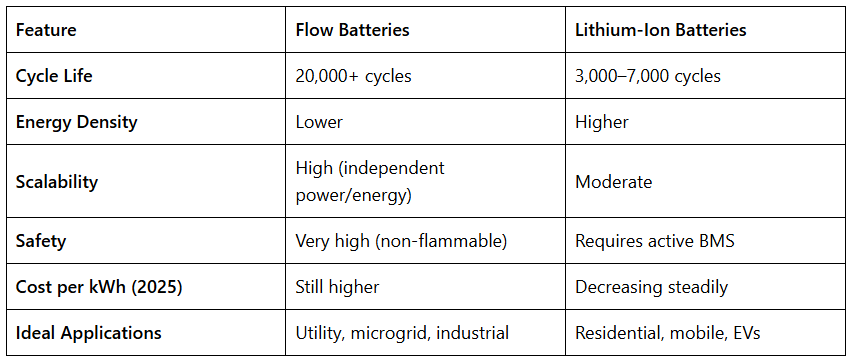

Flow Batteries vs. Lithium-Ion: A Side-by-Side Comparison

The Future of Solar Storage: How Flow Batteries Are Shaping 2025 and Beyond

As the world continues to transition to renewable energy, the need for effective and scalable solar storage systems will only grow. Flow batteries are poised to play a key role in meeting these storage demands. With advancements in electrolyte chemistry, energy density, and cost reduction, flow batteries will become a more attractive option for both commercial and utility-scale solar systems.

In 2025 and beyond, flow batteries will offer a sustainable and cost-effective energy storage solution to help manage the growing energy demands of solar power plants, microgrids, and off-grid systems.

Conclusion: Flow Batteries – A Cornerstone of Solar Storage Solutions

In conclusion, while lithium-ion batteries continue to be the preferred choice for residential solar systems, flow batteries are rapidly emerging as the ideal solution for large-scale and commercial solar storage. With their longer cycle life, scalability, and thermal stability, flow batteries offer a compelling advantage over conventional storage solutions.

As technology continues to improve, flow batteries will become an essential component of solar energy storage systems, providing a safe, scalable, and cost-effective solution for the future of renewable energy.
