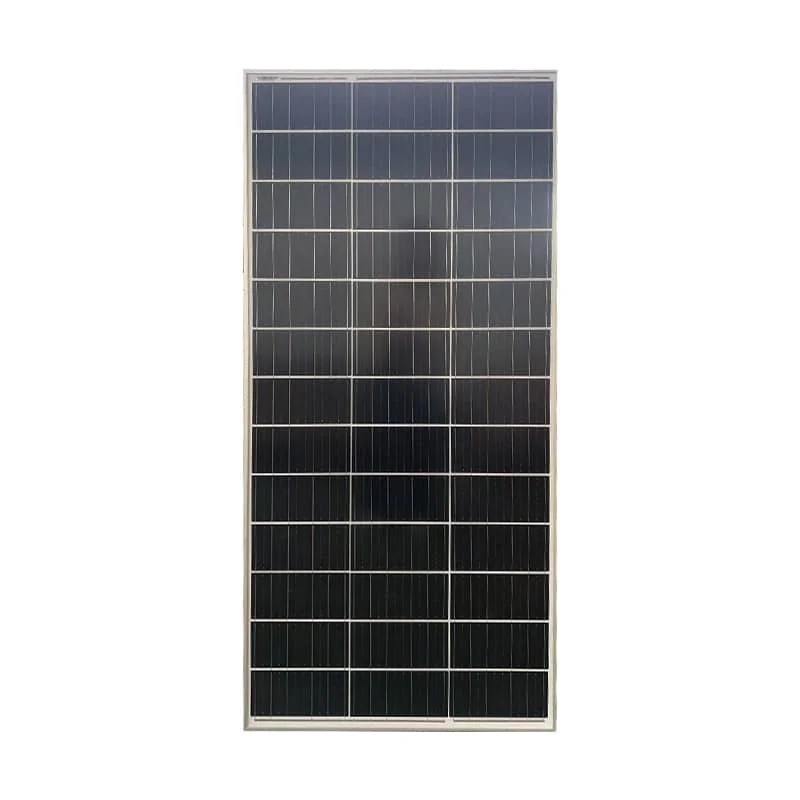

Top 180W 190W 200W Small Solar Panel Manufacturer

    Module efficiency up to 20.8%
    Weight 10.5 kg
    Size 1485×668×30 mm
    Cable: 2.5 mm², 50 cm + MC4
    Power tolerance 0~+3%
    25-year linear power warranty

Share:

TEMPERATURE&MAXIMUM RATING

Maximum System Voltage(V)
1000
Maximum Series Fuse Rating(A)10
Power Tolerance0~+3%
Pmax Temperature Coefficients(W/°C)-0.350%
Voc Temperature Coefficients(V/°C)-0.270%
Isc Temperature Coefficients(A/°C)+0.048%
NOCT Nominal Operating Cell Temperature(℃)45±2
Operating and Storage Temperature(℃)-40~+85
ELECTRICAL DATA(STC)
Model TypeSP180M-39SP190M-39SP200M-39
Peak Power(Pmax)180 190 200
Maximum Power Voltage(Vmp)21.79 21.86 22.45
Maximum Power Current(Imp)8.27 8.7 8.91
Open Circuit Voltage(Voc)24.37 25.62 26.01
Short Circuit Current(Isc)8.72 9.19 9.41
Module Efficiency(%)18.14 18.87 20.8
* STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C

Q :

1. What makes this solar panel different from standard 60-cell modules?

A :

It's more compact and portable, offering 200W in a smaller footprint for flexible use cases.

Q :

2. Can it be used in residential off-grid systems?

A :

Absolutely. It's great for small cabins, sheds, or as supplementary rooftop modules.

Q :

3. Does the panel support partial shade operation?

A :

While shading reduces performance, the panel includes bypass diodes to mitigate losses.

Q :

4. What kind of mounting brackets are compatible?

A :

Standard Z-brackets, tilt mounts, or pole mounts work perfectly with this panel.

Q :

5. Can I pair this panel with a lithium battery system?

A :

Yes, as long as the charge controller supports the battery type and voltage range.

Q :

6. What certifications does the product meet?

A :

Certified to CE, IEC, ISO standards to ensure quality and safety compliance.
