    Sunpal 112–241kWh High Voltage LiFePO₄ Energy Storage Battery

      Quick Customization of Electricity
      Patented Modular Plug Design
      Easy Installation Flexible Expansion
      Emergency-Backup and Off-Grid Functionality
      Long cycle life 6000 cycles
      Safety first Smart BMS system

    Share:

    Download Inquiry
    Technical Parameters (Battery Cluster)
    HP112kWh-X3HP128kWh-X3HP144kWh-X3HP160kWh-X3HP176kWh-X3HP192kWh-X3HP208kWh-X3HP225kWh-X3HP241kWh-X3

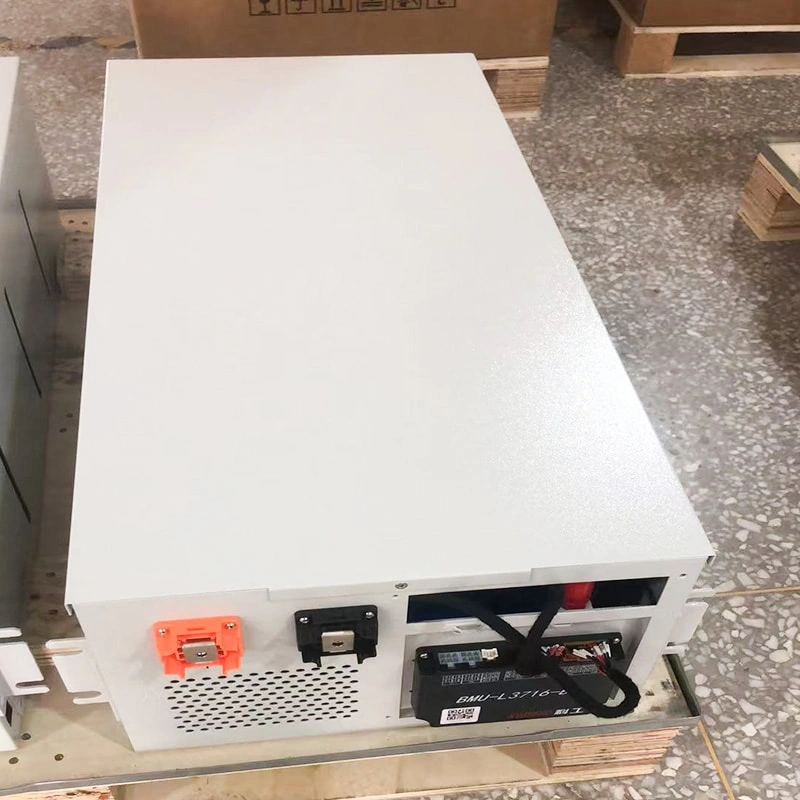

    Battery module specification
    Configuration1P16S
    Rated capacity314Ah
    Rated energy16.0768kWh
    Rated voltage51.2V
    Voltage range44.8-56.8V
    Rated charge/discharge0.5C
    AC internal resistance≤5mΩ
    Dimension (W/D/H)376*885*238.5 (±5) mm
    Weight112kg

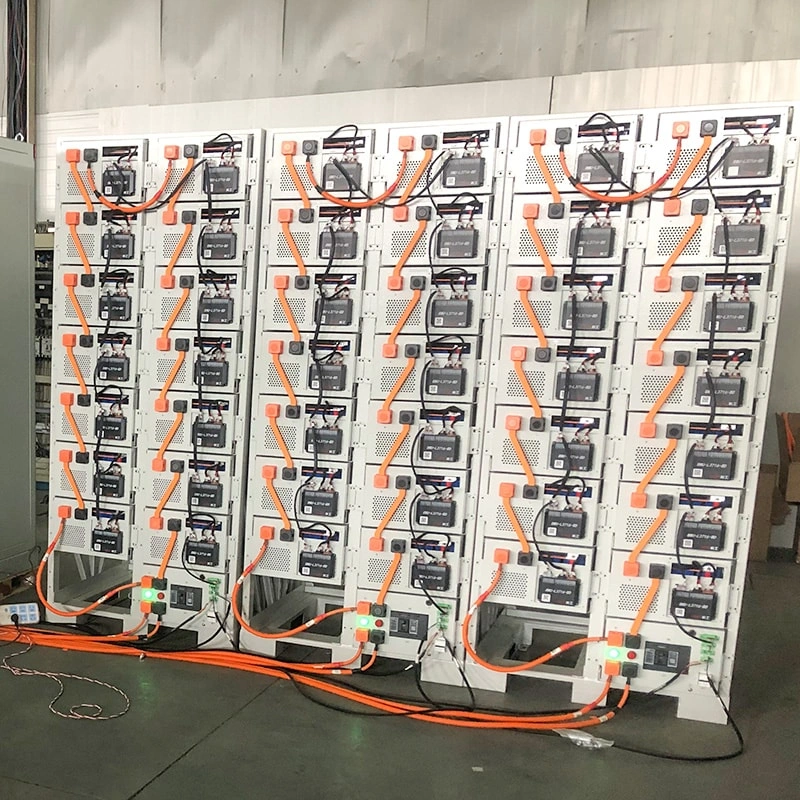

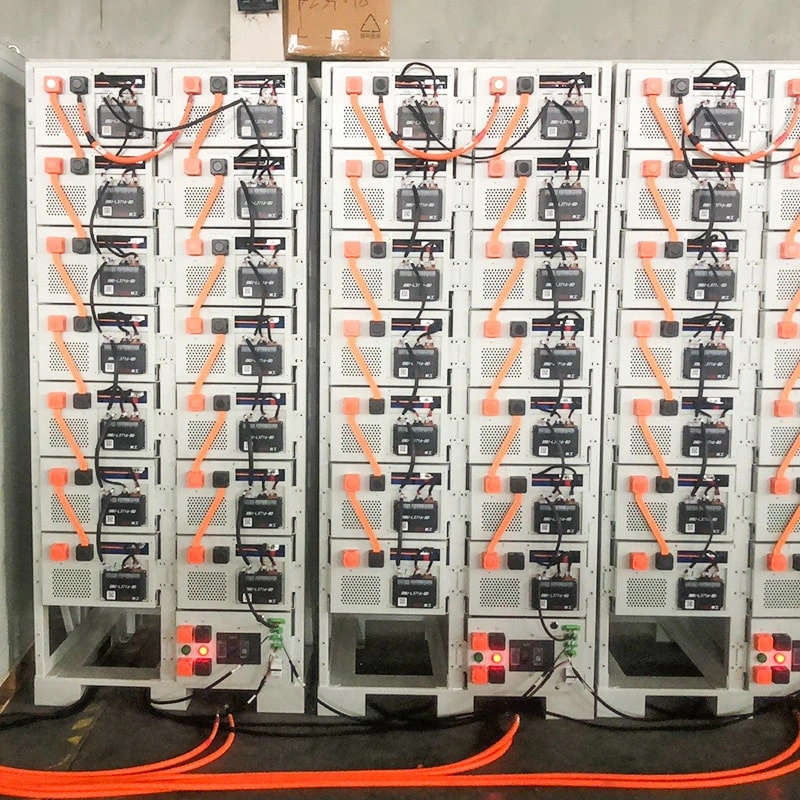

    Battery rack specification
    Configuration7 modules +1 BPU8 modules +1 BPU9 modules +1 BPU10 modules +1 BPU11 modules +1 BPU12 modules +1 BPU13 modules +1 BPU14 modules +1 BPU15 modules +1 BPU
    Rated capacity314Ah
    Rated energy112.5376kWh128.6144kWh144.6912kWh160.768kWh176.8448kWh192.9216kWh208.9984kWh225.0752kWh241.152kWh
    Rated voltage358.4V409.6V460.8V512V563.2V614.4V665.6V716.8V768V
    Voltage range313.6-397.6V358.4-454.4V403.2-511.2V448-568V492.8-624.8V537.6-681.6V582.4-738.4V627.2-795.2V672-852V
    Rated charge/discharge0.5C
    Display7"Touch screen
    BMSIncluded
    CommunicationCAN
    MonitoringRS485
    Dimension(W/D/H)mm900*950*1100900*950*1350900*950*1350900*950*1600900*950*1600900*950*1850900*950*1850900*950*2100900*950*2100
    Weight985kg1110kg1235kg1350kg1475kg1600kg1725kg1850kg1975kg
    Protection degreeIP20
    BMS Parameters on LCD
    Cell voltageYes
    Cell hight voltageYes
    Cell low voltageYes
    Cell temperatureYes
    Charge and dicharge currentYes
    Total battery voltageYes
    Battery SOCYes
    Fault warningYes
    Protection
    Short circuit protectionYes
    Over current protectionYes
    Over charge protectionYes
    Over discharge protectionYes
    Cell over voltage protectionYes
    Cell under voltage protectionYes
    Over temperature protectionYes

    Q :

    1. What is this high voltage battery system designed for?

    A :

    It's a high-capacity battery system for commercial, industrial, off-grid, or emergency backup use—perfect for PV, UPS, and EV charging.

    Q :

    2. How does the system scale in capacity and voltage?

    A :

    Each system uses 7–15 modules in series, providing 112.5–241.1kWh total capacity and 358.4–768V voltage output.

    Q :

    3. Is the system safe for high-current applications?

    A :

    Yes. It supports 0.5C charge/discharge rates, features short circuit, over/under voltage, and thermal protections, plus fuse and SPD layers.

    Q :

    4. What communication protocols are supported?

    A :

    It includes CAN, RS485, and optional Modbus/TCP-IP, ensuring compatibility with mainstream PCS and EMS systems.

    Q :

    5. Can I monitor and control the battery easily?

    A :

    Yes, via a 7-inch touchscreen LCD and real-time SOC/SOH diagnostics for each module and cluster.

    Q :

    6. What's the installation type and maintenance need?

    A :

    Installed indoors in a compact cabinet with patented plug-in modules; minimal maintenance is needed thanks to its smart BMS.
