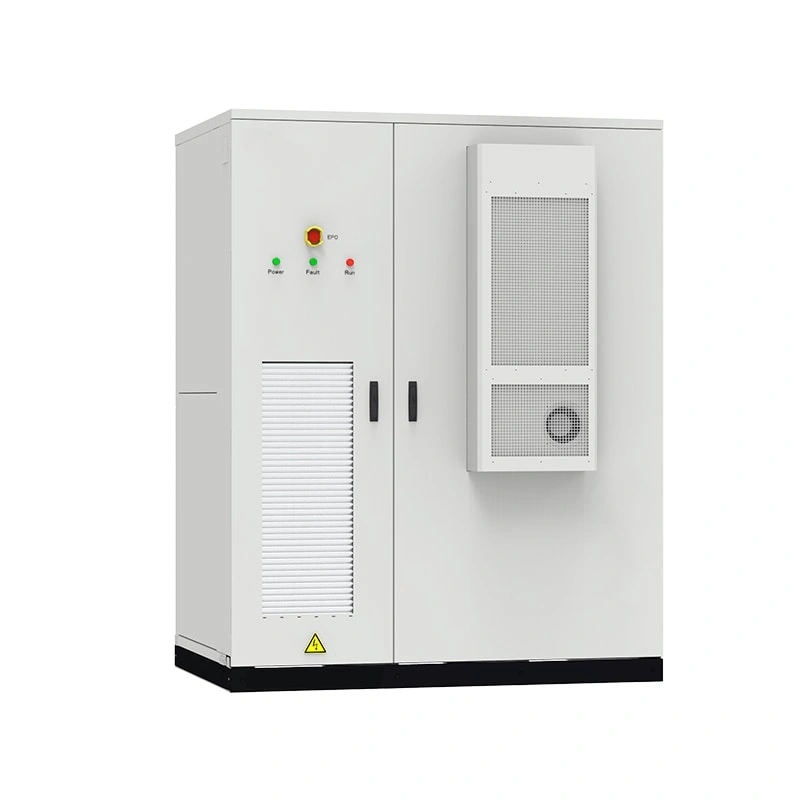

100kW 215kWh Solar Battery Storage System Outdoor Cabinet All In One

Download Inquiry

Battery rated capacity	215kWh
Battery rated voltage	768V
Battery voltage range	672V~864V
Battery type	Lithium iron phosphate battery(LFP)
Battery cell capacity	280Ah
Series of Battery	1P20S12S
Maximum charge and discharge current	140A
Photovoltaic rated capacity	100kW
Photovoltaic voltage range	200~450V
Rated AC power	100kW
Rated AC current	144A
Rated AC voltage	400V，3W+N+PE/3W+PE
Rated AC frequency	50/60Hz
THDI	＜3%（Ratedpower）
Power Factor	-1leading to+1lagging
THDU	＜3%（Linear Load）
Degree of protection	IP54
Protective class	I
Isolation mode	IndustrialTransformerIsolation
Shutdown self-discharge	＜100W（Without transformer）
Display	LCD
Relative humidity	0 ~ 95%(no condensation)
Noise	＜78dB
Ambient temperature	-25℃ to +60℃(withderating at temperatures above 45℃)
Cooling mode	Inteligent air-cooled
Altitude	3000m(> 3000m reduction)
Communication interface	CAN/Ethernet/485
Dimension(WDH)	180012002300mm
Weight(approx.)	3100kg

Brief Introduction

Q : 1. What is this outdoor ESS system used for? A : Outdoor ESS system is designed for commercial solar-plus-storage, peak shaving, off-grid backup, and charging station energy management.
Q : 2. What's included inside the integrated cabinet? A : Outdoor ESS system includes a 215kWh LFP battery, 100kW PCS, EMS, fire system, power distribution, air cooling, and optional transformer.
Q : 3. How is it installed and maintained on-site? A : Outdoor ESS system uses front-access maintenance, compact 1.8×1.2m footprint, and an intelligent air-cooled design for quick deployment.

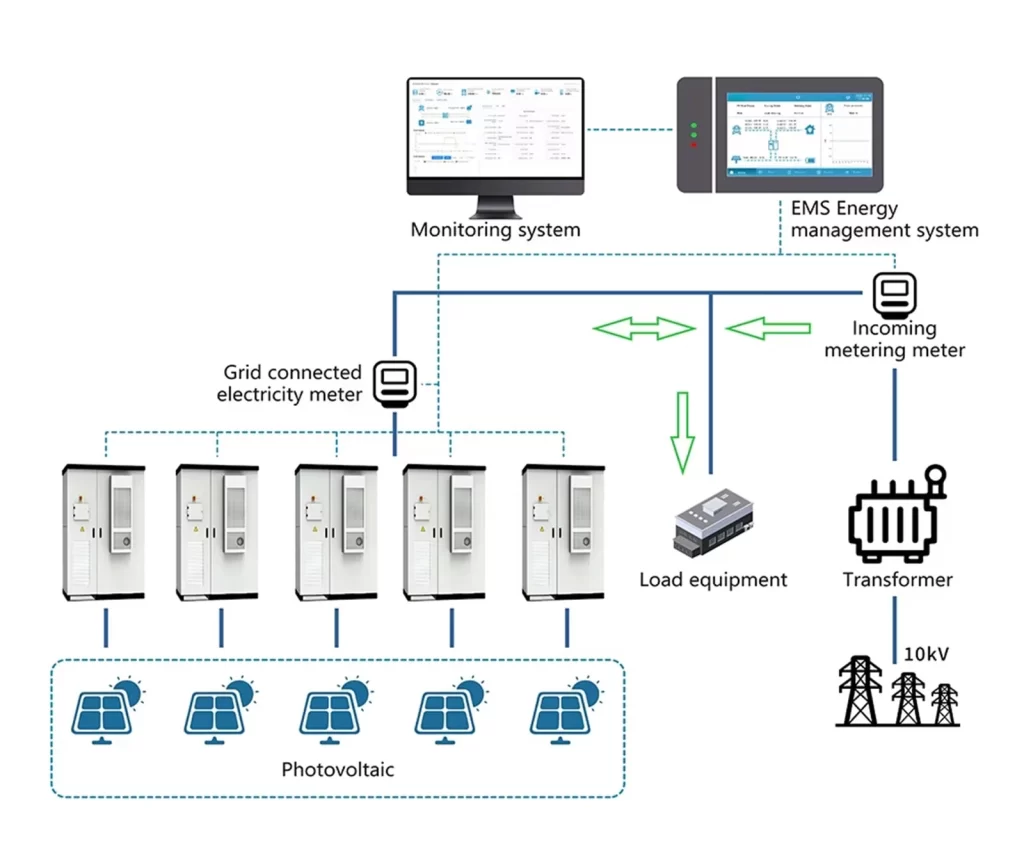

Q : 4. Does it support both grid-tied and off-grid modes? A : Yes, outdoor ESS system supports flexible operation with or without grid access, and offers transformer isolation for electrical safety.
Q : 5. What are the battery specs and safety standards? A : Outdoor ESS system features 768V rated voltage, 672–864V range, 280Ah cells, smart BMS, and complies with IP54 and industrial safety standards.
Q : 6. How is the system monitored and controlled? A : Real-time LCD plus remote EMS via CAN, RS485, or Ethernet enable comprehensive monitoring and control options.
