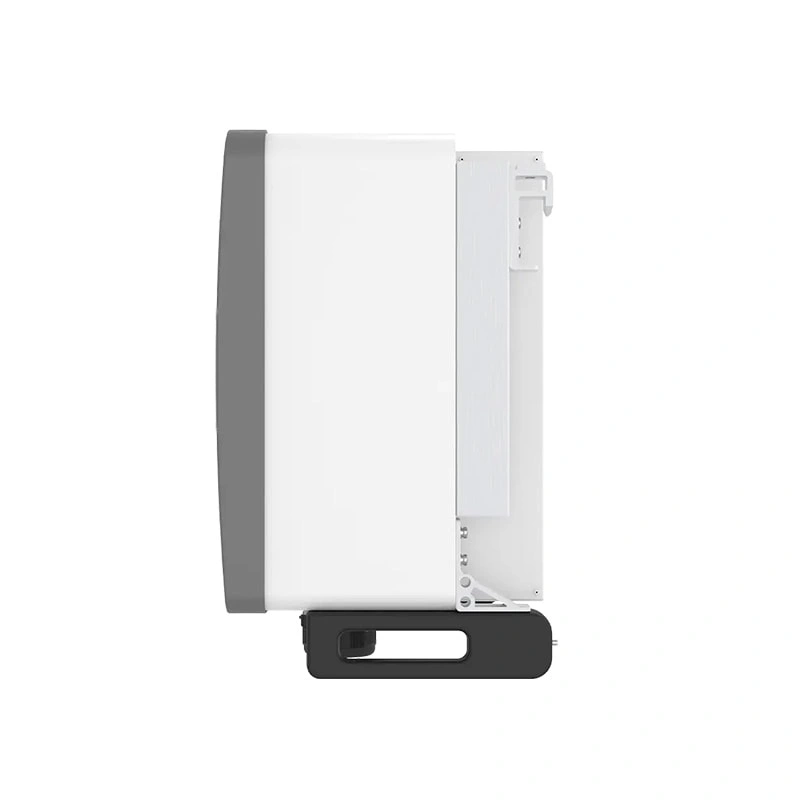

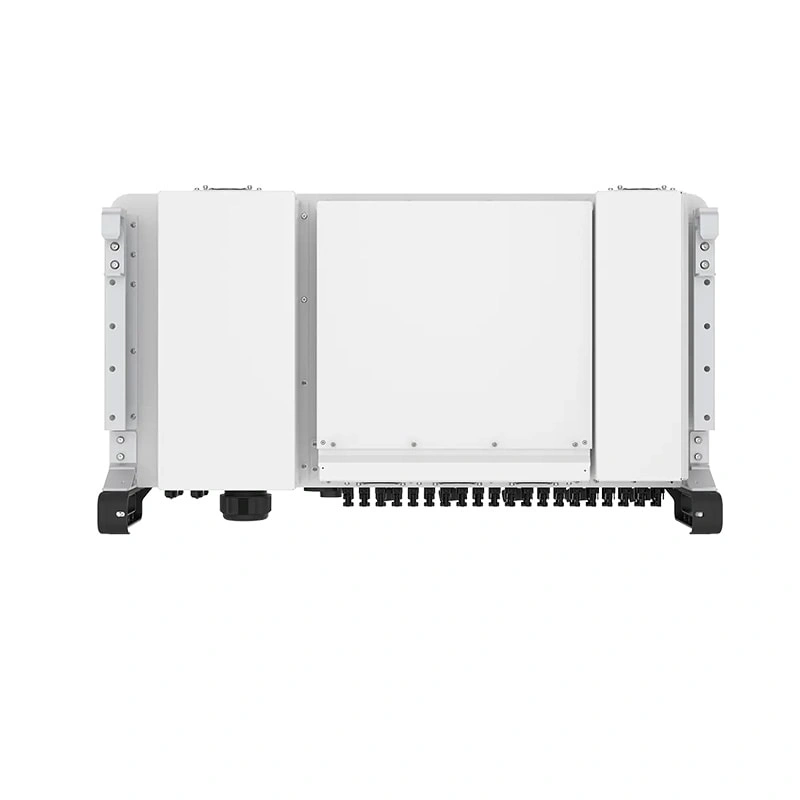

Solis S6-GC(80-125)K 100KW 110KW 125KW Three Phase Grid-Tied Inverter

Download Inquiry

Models	80K	100K	110K	125K	125K-HV
Input DC
Max. input voltage	1100 V
Rated voltage	600 V				720 V
Start-up voltage	180 V
MPPT voltage range	160 - 1000 V
Max. input current	4 × (42 A / 36 A)	5 × (42 A / 36 A)
Max. short circuit current	8 × 50 A	10 × 50 A
MPPT number / Max. input strings number	8 / 16	10 / 20
Output AC
Rated output power	80 kW	100 kW	110 kW	125 kW	125kW
Max. apparent output power	88 kVA	110 kVA	121 kVA	125 kVA	137.5 kVA
Max. output power	88 kW	110 kW	121 kW	125 kW	137.5 kW
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V				3/PE, 480 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	121.6 A / 115.5 A	152.0 A / 144.3 A	167.1 A / 158.8 A	189.9 A / 180.4 A	150.4 A
Max. output current	133.7 A	167.1 A	183.8 A	189.9 A	165.4 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Efficiency
Max. efficiency	98.7%
EU efficiency	98.3%
Features
AC connection	OT terminal (max. 240 mm²)
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS, PLC

Q : 1. How many pieces this model can be parallel? A : Master-slave export power control solution, flexible and fast control, support 10 units in parallel
Q : 2. What's the communication port? A : Dual independent RS485 ports, perfect adaptation to third-party integration
Q : 3. How efficient is the system in actual operation? A : It reaches 99.03% max efficiency and 98.53% European efficiency, with 99.9% MPPT accuracy.
Q : 4. What advanced safety features are included? A : It supports intelligent string disconnection, AFCI (optional), surge protection, and string fault monitoring.
