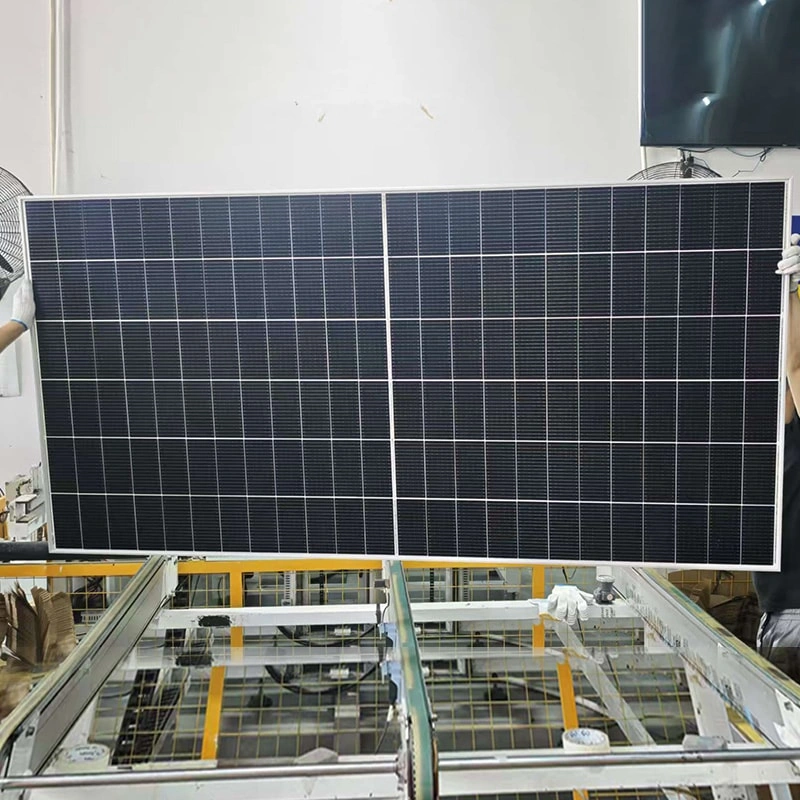

JINKO 590W N-Type Mono Solar Panel for High Efficiency Systems

Download Inquiry

*Specification

Mechanical Characteristics
Cell Type	N -type Mono-crystalline
No. of cells	144 (72×2)
Dimensions	2278×1134×30 mm
Weight	27.0 kg
Front Glass	3.2mm, Anti-reﬂection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class II
IEC Fire Type	Class C
Connector Type	JK03M/MC4/Others
Output Cables	4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length

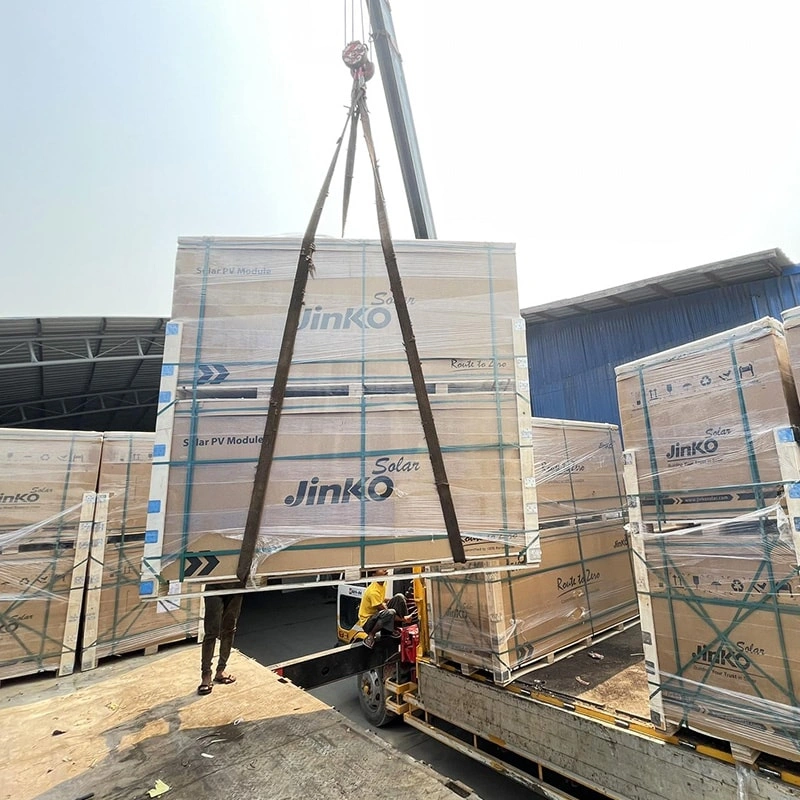

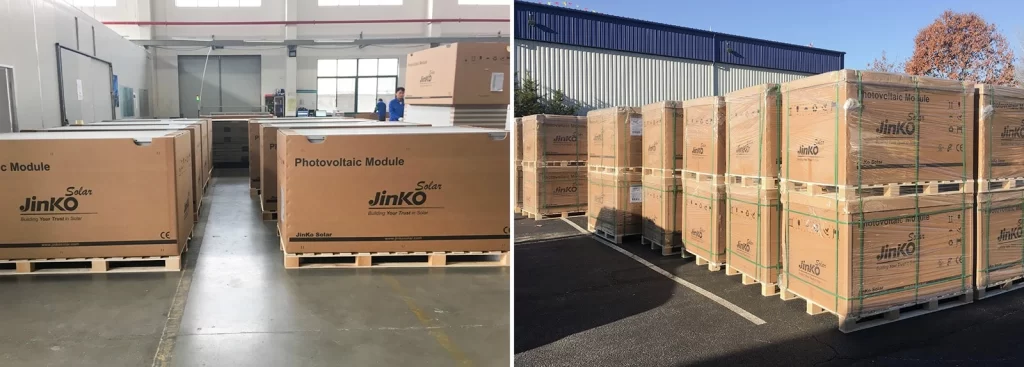

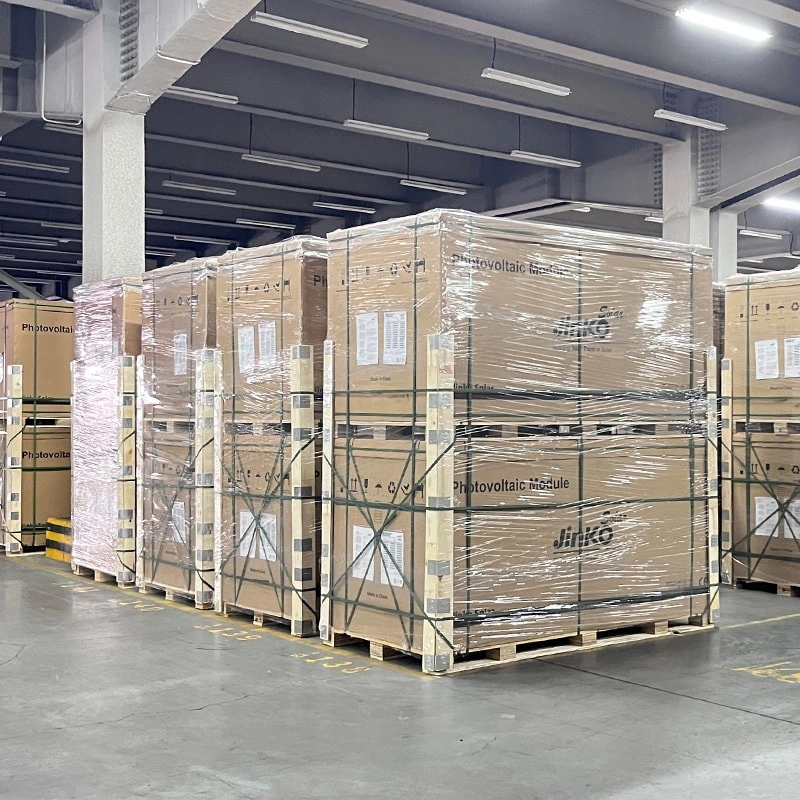

Packaging Conﬁguration
Pallet Dimensions	2308×1140×1249 mm
Packing detail (Two pallets=One stack)	37 pcs/pallets, 74 pcs/stack, 740 pcs/ 40IHQ Container
Speciﬁcations (STC)
Maximum Power - Pmax [Wp]	580 585 590 595 600 605
Maximum Power Voltage - Vmp [V]	43.35 43.53 43.71 43.88 44.06 44.23
Maximum Power Current - Imp [A]	13.38 13.44 13.50 13.56 13.62 13.68
Open-circuit Voltage - Voc [V]	52.31 52.47 52.63 52.79 52.95 53.11
Short-circuit Current - Isc [A]	14.01 14.07 14.13 14.19 14.25 14.31
Module Eﬃciency STC [%]	22.45 22.65 22.84 23.03 23.23 23.42
Power Tolerance	0 ~ + 3 %
Temperature Coeﬃcients of Pmax	-0.29 %/oC
Temperature Coeﬃcients of Voc	-0.25 %/oC
Temperature Coeﬃcients of Isc	0.045 %/oC

STC: Irradiance 1000W/m2, Cell Temperature 25oC, AM=1.5

Q : Q: What is the efficiency of the JINKO 590W N-Type panel? A : A: The module offers up to 22.84% efficiency, ensuring excellent performance in various solar installations.
Q : Q: What cell technology is used in the JINKO 590W panel? A : A: It uses N-Type TOPCon cells with MBB half-cell design for improved performance and lower degradation.
Q : Q: Is the JINKO 590W panel suitable for harsh environments? A : A: Yes, it features PID resistance, salt mist, and ammonia resistance, and can operate from -40°C to +70°C.
Q : Q: What are the warranty terms for the JINKO 590W panel? A : A: It includes a 12-year product warranty and a 30-year linear power output warranty with low annual degradation (≤0.40%)
Q : Q: What is the panel size and weight? A : A: The panel measures 2278×1134×30mm and weighs 27.0 kg, ideal for utility and commercial-scale solar projects.
