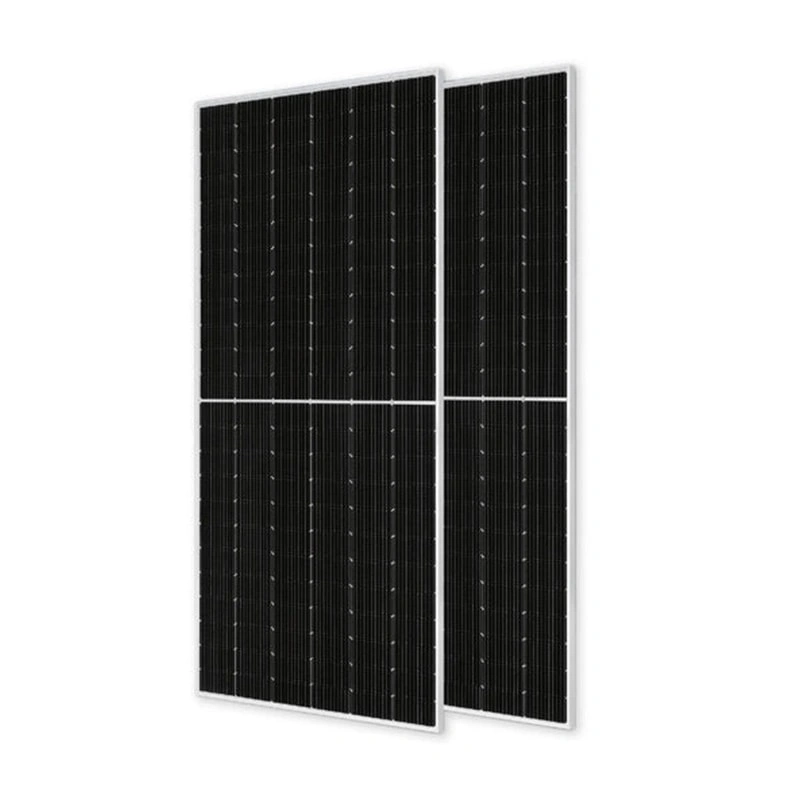

Hot-Selling JA 590/595/600W Mono Bifacial Double Glass Solar Panel

Download Inquiry

TYPE	570/MB	575/MB	580/MB	585/MB	590/MB	595/MB
Rated Maximum Power(Pmax)[W]	570	575	580	585	590	595
Open Circuit Voltage(Voc)[V]	51.52	51.73	51.95	52.16	52.37	52.58
Maximum Power Voltage(Vmp)[V]	43.62	43.82	44.02	44.22	44.43	44.64
Short Circuit Current(Isc)[A]	13.74	13.79	13.84	13.89	13.94	13.99
Maximum Power Current(Imp)[A]	13.07	13.12	13.17	13.23	13.28	13.33
Module Efficiency [9%]	21.1	22.3	22.5	22.6	22.8	23.0
Power Tolerance	0~+3%
Temperature Coefficient of lsc(a_lsc)	0.046%/℃
Temperature Coefficient of Voc(β_Voc)	0.260%/℃
Temperature Coefficient of Pmax(Y_Pmp)	0.290%/℃
STC	Iradiance 1000W/m²,cell temperature 25℃,AM1.5G

Q : 1. What makes this module different from standard mono panels? A : It features a bifacial double-glass build, offering up to 20% extra yield from the rear side.
Q : 2. Is it suitable for large-scale ground-mount projects? A : Yes, it's optimized for utility-scale PV farms aiming at low LCOE and high energy density.
Q : 3. How does it handle heat and sunlight? A : With low temperature coefficients, it maintains high efficiency in hot climates and strong sun.
Q : 4. What are the reliability and safety certifications? A : It complies with IEC standards and supports high-voltage (1500V) systems with PID resistance.
Q : 5. What is its size and installation weight? A : The module measures around 2278×1134×30 mm and weighs approximately 32 kg, standard for bifacial types.
