| Specifications | Parameter |
|---|---|
| Product Nominal Voltage | 768V |
| Nominal Capacity | 314Ah |
| Dimension (Module, mm) | 483 × 245 × 792 × 15 |

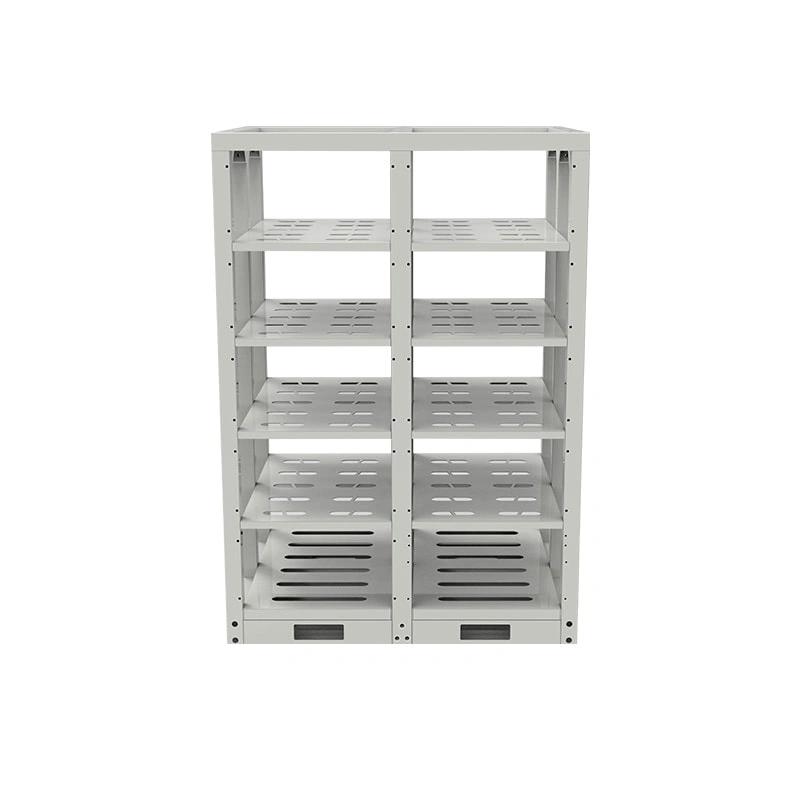

| Dimension (Rack, mm) | 1090 × 780 × 2190 |
| Weight | 1920 kg |
| Nominal Capacity (kWh) | 241.2 kWh |
| Discharge Cut-Off Voltage | 660 V |
| Charge Cut-Off Voltage | 852 V |
| Recommended Charge/Discharge Current | 100 A |
| Max. Charge/Discharge Current | 160 A |
| Communication | RS485 / RS232 / CAN |
| Working Temperature (Charge) | -10°C ~ 50°C |
| Working Temperature (Discharge) | 0°C ~ 50°C |
| Transport/Storage Temperature | -20°C ~ 60°C |
| Certification | CE / EC / UL / UN38.3 / MSDS / RoHS |
| Design Life | 15+ years |
| Cycle Life (0.5C / 0.5C, 80% DOD) | > 6000 times |
| Series Function | Support up to 15 units in series |

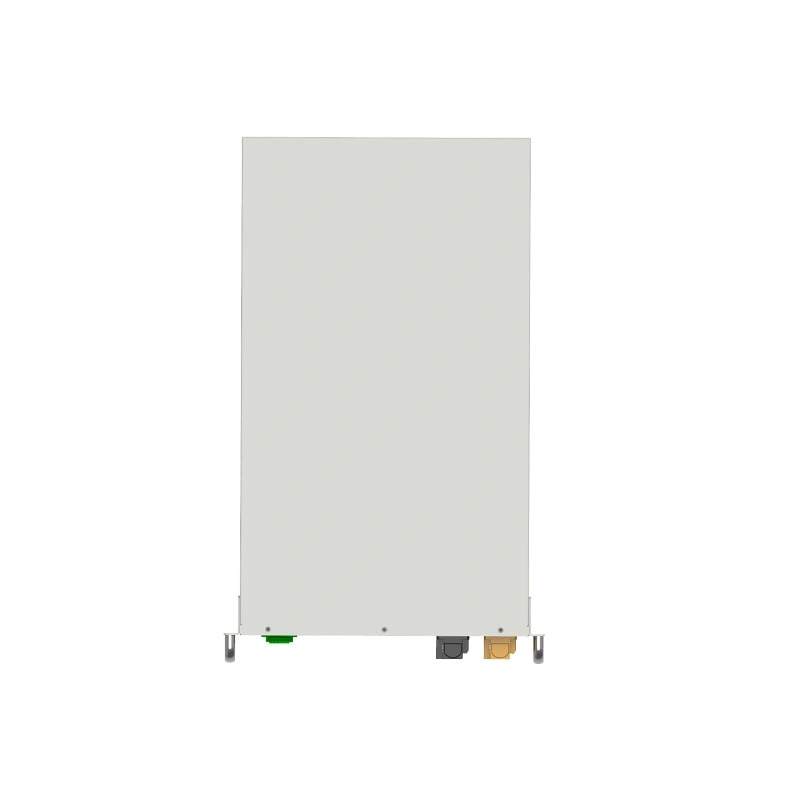

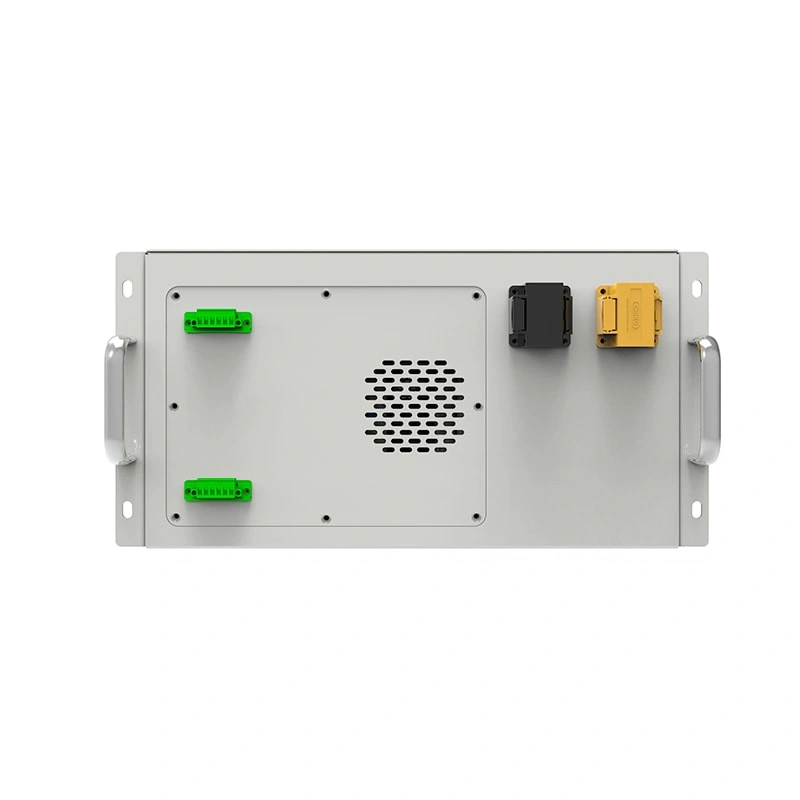

High Voltage Lithium Battery Cluster – 51.2V 314Ah Modules with Scalable Rack System for Energy Storage
High Voltage Lithium Battery Cluster – 51.2V 314Ah Modules with Scalable Rack System for Energy Storage
Stackable design, up to 241kWh
Parallel support for 15 systems
1C discharge, broad inverter match
Independent module-level protection
Manual switch, LCD, and pulley base
Self-healing LFP with nano coating
-
Q :
1. What is this battery system mainly used for?
A :
It's ideal for commercial setups needing compact high-voltage storage.
-
Q :
2. How does the stackable design work?
A :
You can connect 2–15 battery modules with automatic balancing and unified management.
-
Q :
3. Is the battery safe and long-lasting?
A :
Yes, it uses LiFePO₄ chemistry with nano-coating and self-healing tech, plus over 6000 cycles at 80% DOD.
-
Q :
4. What communication and control protocols are supported?
A :
The system includes CAN, RS485, RS232, and optional Bluetooth/WiFi for EMS and inverter compatibility.
-
Q :
5. How is it installed and managed?
A :
It features a compact IP65 cabinet, pulley wheels, manual switch, and LCD/remote monitoring options for easy setup.
-
Q :
6. What certifications does the system have?
A :
Certified to UN38.3, IEC62619, CE, and UL1973 for international transport, safety, and compliance standards.
