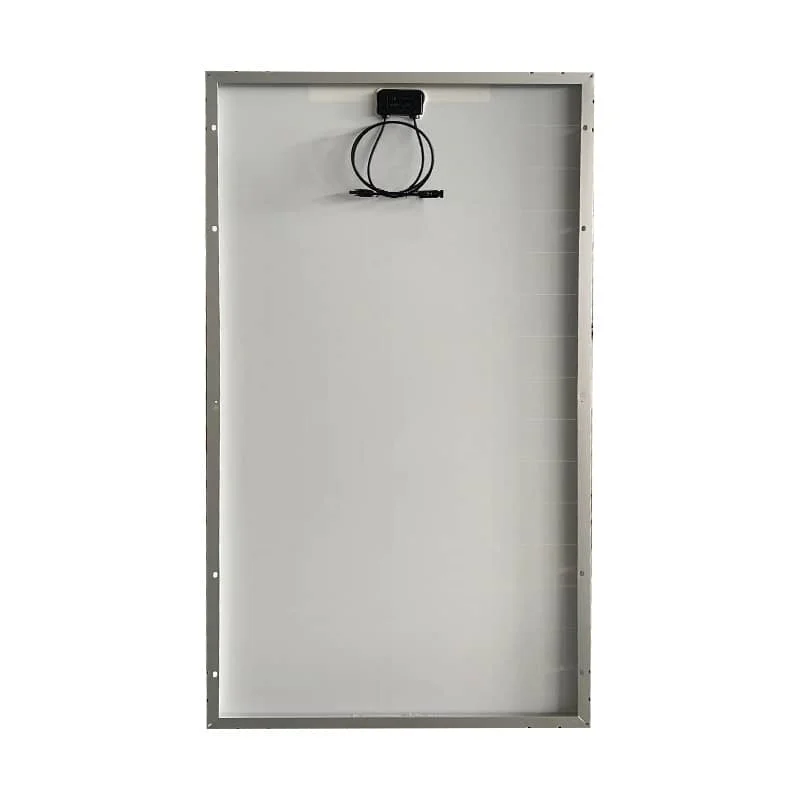

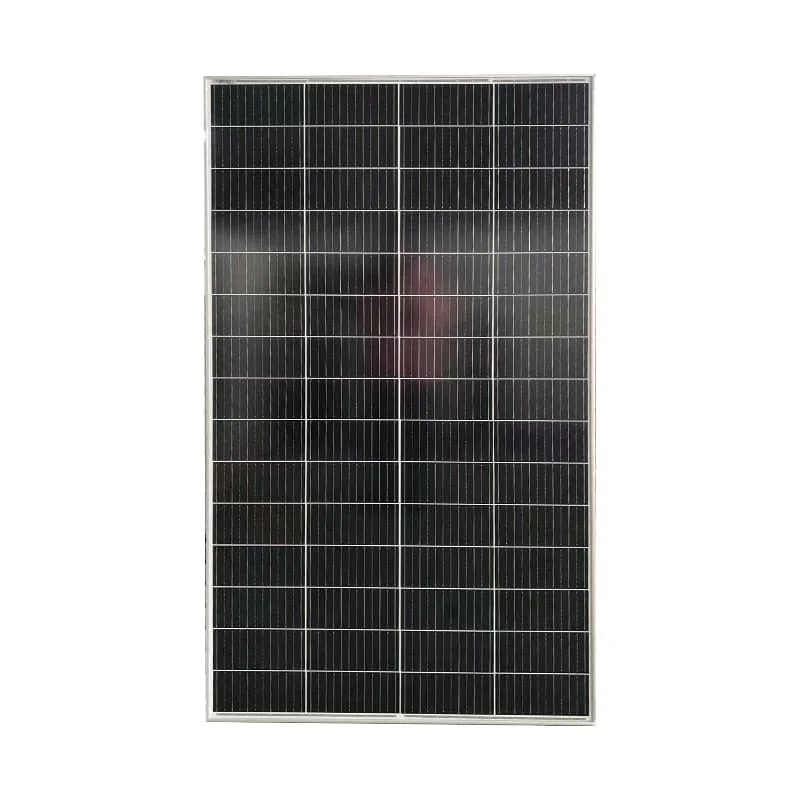

Sunpal High Efficiency 290W 300W 310W Small PV Module
A series of high-efficiency small solar modules available in 290W, 300W, and 310W models. Features a module efficiency of up to 21.35%, robust build with a size of 1650x880x35 mm, and a 25-year linear power output warranty. Designed for wholesale.
Product SKU: SP290-310M-60
Product Brand: Sunpal PV
Product Currency: USD
Product Price: 0.09W~0.1W
Price Valid Until: 2025-10-31
Product In-Stock: InStock
Editor's Rating:
4.2
4.2
*Specification
| TEMPERATURE&MAXIMUM RATING | |||||||||||||
Maximum System Voltage(V) | 1000 | ||||||||||||
| Maximum Series Fuse Rating(A) | 15 | ||||||||||||
| Power Tolerance | 0~+3% | ||||||||||||
| Pmax Temperature Coefficients(W/°C) | -0.350% | ||||||||||||
| Voc Temperature Coefficients(V/°C) | -0.270% | ||||||||||||
| Isc Temperature Coefficients(A/°C) | +0.048% | ||||||||||||
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 | ||||||||||||
| Operating and Storage Temperature(℃) | -40～+85 | ||||||||||||
| ELECTRICAL DATA(STC) | |||||||||||||||||
| Model Type | SP290M-60 | SP300M-60 | SP310M-60 | ||||||||||||||
| Peak Power(Pmax) | 290W | 300W | 310W | ||||||||||||||
| Maximum Power Voltage(Vmp) | 33.4 | 33.93 | 34.51 | ||||||||||||||
| Maximum Power Current(Imp) | 8.69 | 8.85 | 8.72 | ||||||||||||||
| Open Circuit Voltage(Voc) | 39.58 | 39.87 | 41.61 | ||||||||||||||
| Short Circuit Current(Isc) | 9.2 | 9.36 | 9.19 | ||||||||||||||
| Module Efficiency(%) | 19.97 | 20.66 | 21.35 | ||||||||||||||
| * STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C | |||||||||||||||||

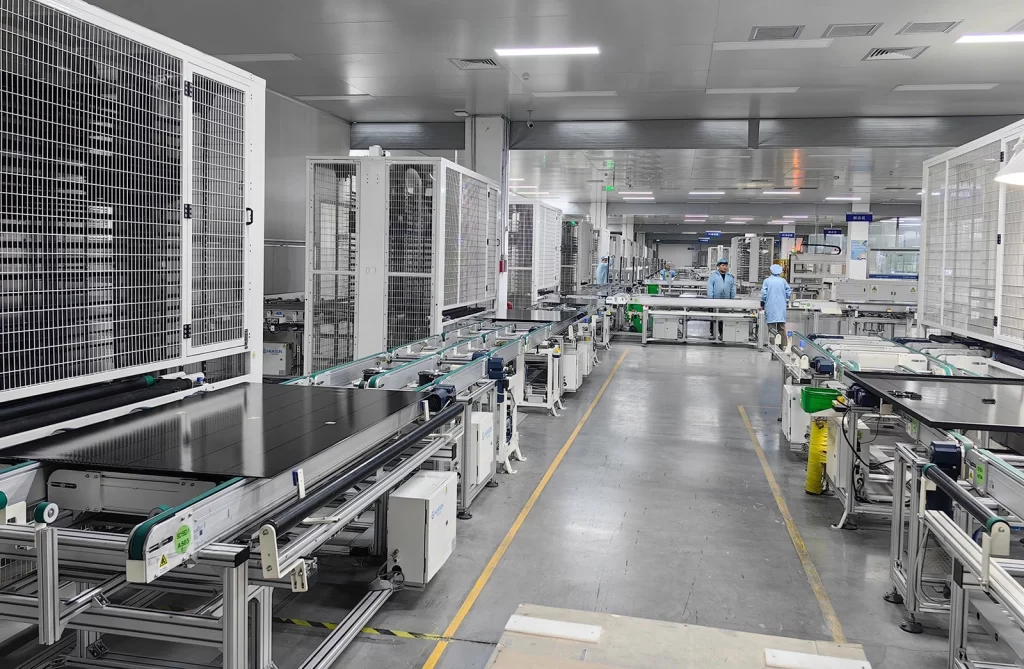

*Factory Production Line
