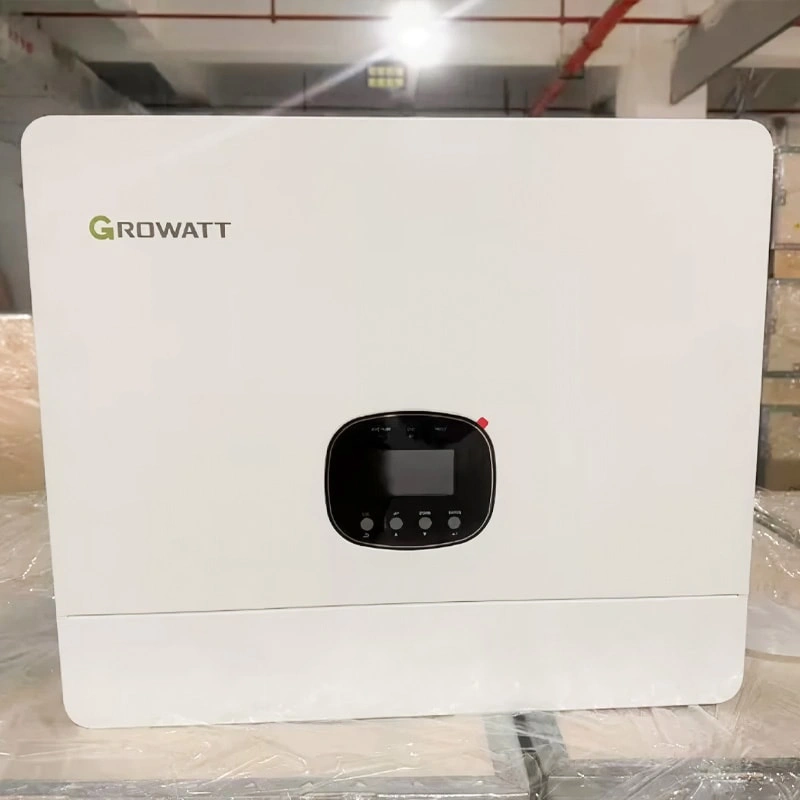

Growatt 8KW 10KW 12kW Single Phase Hybrid Inverter with Generator Input and Smart Load Output

Download Inquiry

Model No.	SPE 8000 ES	SPE 10000 ES	SPE 12000 ES
Product Warranty (Min)	5 Years	5 Years	5 Years
Max. DC Power	10 kW	12.5 kW	15 kW
Max. DC Voltage	550 V	550 V	550 V
Min. DC Voltage to Start Feed In	120 V	120 V	120 V
Max. DC Current	54 A	54 A	54 A
MPP(T) Voltage Range	60~480 V	60~480 V	60~480 V
No of MPP Trackers	2	2	2
DC Inputs	2	2	2
Connectors	MC4	MC4	MC4
Nominal AC Power	8 kW	10 kW	12 kW
Nominal AC Voltage	230 V	230 V	230 V
Frequency	50, 60 Hz	50, 60 Hz	50, 60 Hz
Distortion (THD)	< 5 %	< 5 %	< 5 %
Max. Efficiency	96.50%	96.50%	96.50%
Euro Efficiency	95.50%	95.50%	95.50%
Dimensions (H/W/D)	465x550x150 mm	465x550x150 mm	465x550x150 mm
Weight	21.5 kg	21.5 kg	21.5 kg
Noise Level	< 75 dB(A)	< 75 dB(A)	< 75 dB(A)
Transformer	Transformerless
Protection Class	IP20
Humidity	5-95 %
Cooling	Fan
Max. Altitude	2000 m
Interface	WLAN

Q : 1. What applications is this inverter ideal for? A : It's perfect for residential or small commercial hybrid systems requiring battery storage, solar input, and generator backup.
Q : 2. How much PV power and battery current can it handle? A : It supports up to 15kW of PV input and max battery charge/discharge currents of up to 280A depending on the model.
Q : 3. Can it operate in both grid-tied and off-grid modes? A : Yes, it supports grid-tied operation for peak shaving, as well as off-grid and backup functionality with seamless switching.
Q : 4. What kind of battery types are supported? A : Compatible with 48V lithium and lead-acid batteries, with adjustable charge/discharge settings via BMS or manual config.
Q : 5. What are the dual AC outputs used for? A : One output is for essential loads (backup), the other for non-critical loads, allowing smart energy prioritization.
Q : 6. Is remote monitoring available? A : Yes, it supports Wi-Fi and optional 4G connectivity for real-time cloud or app-based monitoring.
