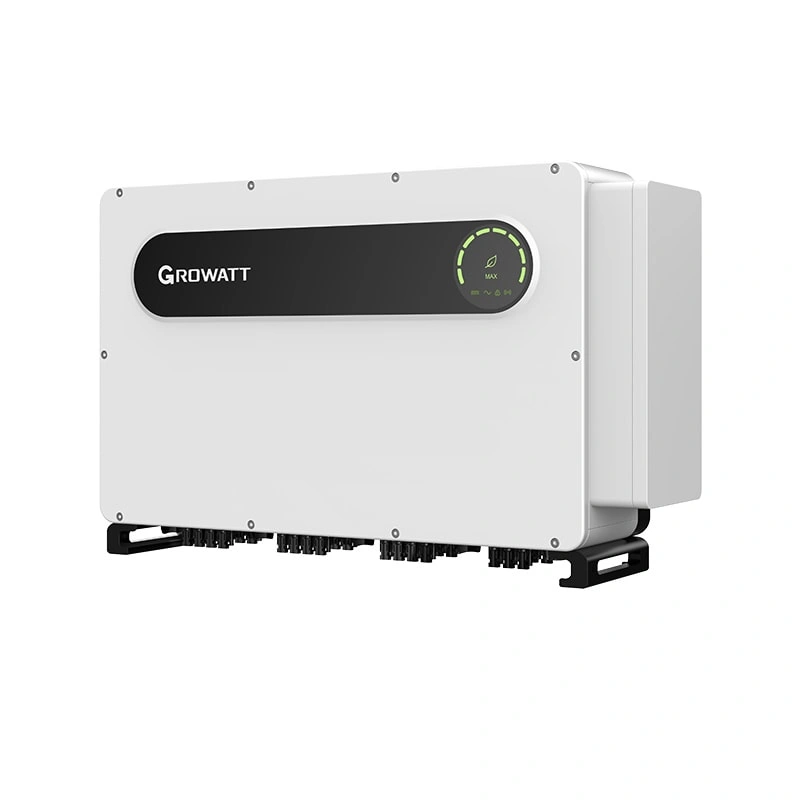

Growatt 185KW 216KW 250KW 253kW 800V Utility-Scale PV Inverter for Ground-Mount Solar Plants

Download Inquiry

Max. DC voltage (V)	1500
Start Voltage (V)	500
Nominal voltage (V)	1080
MPP voltage range (V)	500-1500
No.of MPP Trackers	9,12,15
No.of Strings per MPPTracker	2
Max. input current per MPP tracker (A)	30
Max. short-circuit current per MPP tracker (A)	50

Q : 1. What projects is this inverter designed for? A : It's built for large utility-scale PV plants using 800V AC grids, including ground-mount and solar farm installations.
Q : 2. How flexible is the MPPT configuration? A : It offers 9–15 MPPTs depending on model, each supporting 2 strings with 30A input and 50A short-circuit current.
Q : 3. What kind of grid support functions are included? A : It supports LVRT, HVRT, anti-islanding, Night SVG, power factor adjustment, and is grid-code compliant worldwide.
Q : 4. What protection features does it include? A : Integrated protections include Type I/II SPD, AFCI (optional), residual current monitoring, ground fault detection, and PID suppression.
Q : 5. How efficient is the inverter in real-world operation? A : With max efficiency of 99% and MPPT efficiency of 99.9%, it ensures high system yield even in dynamic irradiance conditions.
Q : 6. How is the inverter monitored and managed? A : It supports RS485, USB, PLC, 4G, and Wi-Fi, with app/cloud compatibility and up to 25 years of data storage.
