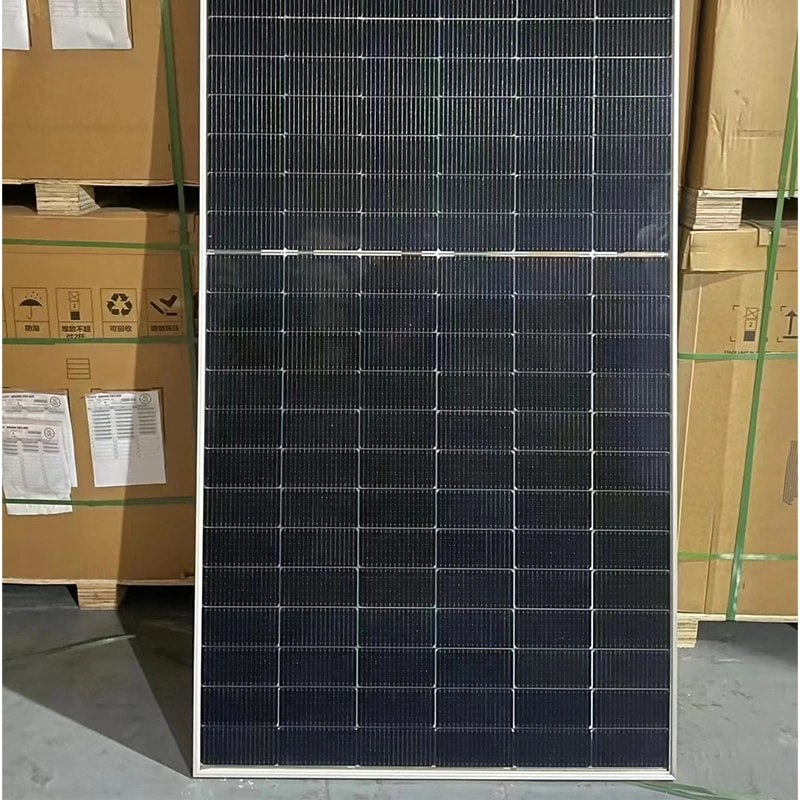

Factory Price of Jinko TOPCon 700-715W Bifacial Dual Glass PV Module

Download Inquiry

Mechanical Characteristics
Cell Type	N-type Mono-crystalline
No.of cells	132(66×2)
Dimensions	2384×1303×33 mm
Weight	37.5kg
Front Glass	2.0 mm,Anti-Reflection Coating
Back Glass	2.0 mm,Heat Strengthened Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class Il
IEC Fire Type	Class C
Connector Type	Jinko material:JK03M;JK03M2;Stäubli:MC4-EVO2
Output Cables	4.0 mm² (+):400 mm,(-):200 mm or Customized Length

Specifications(STC)
Maximum Power-Pmax [Wp]	700	705	710	715
Maximum Power Voltage-Vmp [V]	40.42	40.53	40.65	40.77
Maximum Power Current-Imp [A]	17.32	17.40	17.47	17.54
Open-circuit Voltage-Voc[V]	48.40	48.56	48.73	48.88
Short-circuit Current-Isc [A]	18.40	18.46	18.53	18.60
Module Efficiency STC[%]	22.54	22.70	22.86	23.02
Power Measurement Tolerance	±3%
Power Sorting	0~+3%
Temperature Coefficients ofPmax -0.29%/℃	-0.29%/℃
Temperature Coefficients ofVoc	-0.25%/℃
Temperature Coefficients oflsc	0.045%/℃

Q : 1. What is the benefit of using N-Type TOPCon in this panel? A : It offers lower degradation, better low-light performance, and improved thermal behavior over P-type modules.
Q : 2. How much extra power can the bifacial design generate? A : Depending on the ground reflectivity, the rear side can add up to 20% more power, reducing LCOE significantly.
Q : 3. Is this panel suitable for desert, snow, or windy conditions? A : Yes. It's tested for 5400 Pa front and 2400 Pa rear loads, and it operates reliably from –40°C to +70°C.
Q : 4. What inverter setup is recommended for this module? A : Use string inverters or central inverters rated for 1500V DC systems to fully utilize its power capacity.
Q : 5. Does this module come with pre-installed connectors? A : Yes. It includes 4.0 mm² output cables (400mm + / 200mm –) with MC4 or JK03M-compatible connectors.
