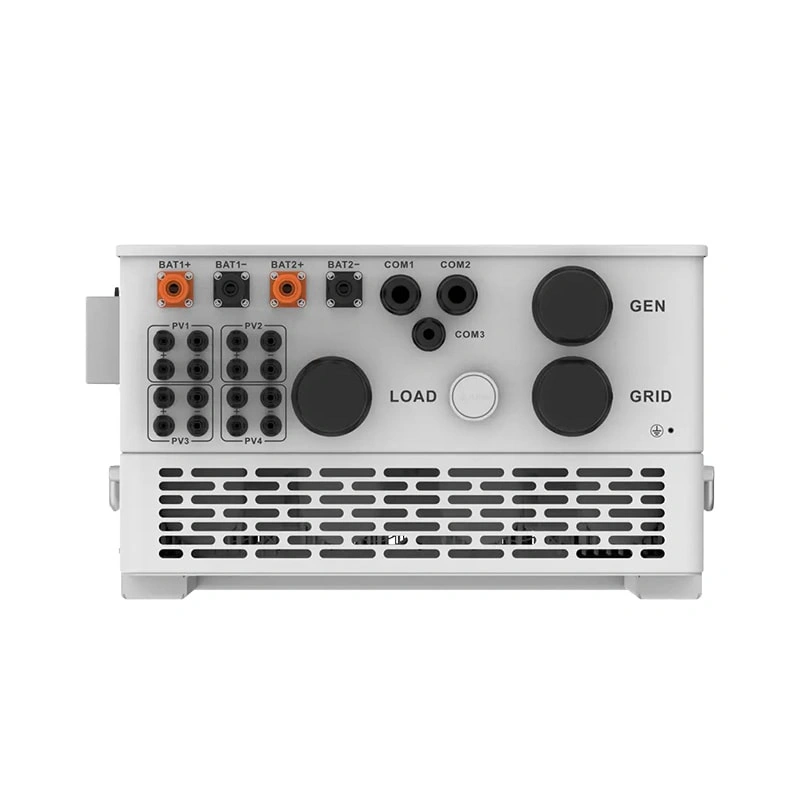

    Deye 29.9/30/35/40/50kW Hybrid Three Phase Inverter for Large-Scale Solar Systems

    Product Features

    • Deye 30kW 40kW 50kW Hybrid Grid Tie Inverter with Battery Backup for Solar Systems
    • Deye High Power Hybrid Inverter for On Grid Off Grid Solar Systems 30kW 40kW 50kW
    • Deye Commercial Hybrid Solar Inverter 30kW 40kW 50kW for Renewable Energy Systems
    • Deye Multi Functional Hybrid Inverter 30kW 40kW 50kW for Commercial Solar Projects
    • Deye 30kW 40kW 50kW Hybrid Grid Tie Inverter with Battery Backup for Solar Systems
    • Deye High Power Hybrid Inverter for On Grid Off Grid Solar Systems 30kW 40kW 50kW
    • Deye Commercial Hybrid Solar Inverter 30kW 40kW 50kW for Renewable Energy Systems
    • Deye Multi Functional Hybrid Inverter 30kW 40kW 50kW for Commercial Solar Projects

    Deye 29.9/30/35/40/50kW Hybrid Three Phase Inverter for Large-Scale Solar Systems

    Product Features

      100% unbalanced output per phase
      AC coupling for solar system retrofits
      Supports 10 inverters in parallel
      Dual battery input, max 100A charge/discharge
      High-voltage battery for better efficiency
      6 charge/discharge time settings

    Share:

    Download Inquiry
    ModelSUN-29.9K-SG01HP3SUN-30K-SG01HP3SUN-40K-SG01HP3SUN-50K-SG01HP3
    -EU-BM3-EU-BM3-EU-BM4-EU-BM4
    Battery Input Data
    Battery TypeLithium-ion
    Battery Voltage Range (V)160-800
    Max. Charging Current (A)50+50
    Max. Discharging Current (A)50+50
    Number of Battery Input2
    Charging Strategy for Li-Ion BatterySelf-adaption to BMS
    PV String Input Data
    Max. DC Input Power (W)38870390005200065000
    Max. DC Input Voltage (V)1000
    Start-up Voltage (V)180
    MPPT Range (V)150-850
    Full Load DC Voltage Range (V)360-850360-850360-850450-850
    Rated DC Input Voltage (V)600
    PV Input Current (A)36+36+3636+36+36+36
    Max. PV I (A)55+55+5555+55+55+55
    No.of MPP Trackers34
    No.of Strings per MPP Tracker2+2+22+2+2+2
    AC Output Data
    Rated AC Output Active Power (W)29900300004000050000
    Max AC Output Active Power (W)29900330004400055000
    AC Output Rated Current (A)45.4/43.445.5/43.560.7/5875.8/72.5
    Max. AC Output Rated Current (A)45.4/43.450/47.866.7/63.883.4/79.7
    Max. Three-phase Unbalanced Output Current (A)60607083.3
    Max. Continuous AC Passthrough (A)200
    Peak Power (Off Grid)1.5 time of rated power, 10 S
    Generator Input/Smart Load45.4 / 200 / 45.460.7 / 200 / 60.775.8 / 200 / 75.8
    /AC Couple Current (A)
    Power Factor Adjustment Range0.8 leading to 0.8 lagging
    Output Frequency and Voltage50/60Hz; 3L/N/PE 220/380, 230/400Vac
    Grid TypeThree Phase
    Total Harmonic Distortion (THD)<3% (of nominal power)
    DC Current Injection<0.5% In
    Efficiency
    Max. Efficiency97.60%
    Euro Efficiency97.00%
    MPPT Efficiency99.90%
    Certififications and Standards
    Grid RegulationVDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
    G98, G99, C10-11, UNE217002, NBR16149/NBR16150
    Safety EMC / StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
    General Data
    Operating Temperature Range (℃)-40-60℃, >45℃ Derating
    CoolingSmart Cooling
    Noise (dB)≤65 dB
    Communication with BMSRS485; CAN
    Weight (kg）80
    Cabinet Size (WxHxD mm)527×894×294 (Excluding Connectors and Brackets)
    Protection DegreeIP65
    Installation StyleWall-mounted
    Warranty5 Years (10 Years Optional)

    Q :

    1. What type of projects is this inverter suitable for?

    A :

    This inverter is ideal for large-scale residential, commercial, and industrial hybrid systems requiring high power and flexibility.

    Q :

    2. Does it support high-voltage battery banks?

    A :

    Yes, it works with lithium-ion batteries in the 160–800V range, allowing efficient operation and extended cable runs.

    Q :

    3. Can I expand my system with more inverters or batteries?

    A :

    Absolutely. Up to 10 inverters can be paralleled, and multiple batteries can be connected via its dual input ports.

    Q :

    4. Is this inverter compatible with diesel generator backup?

    A :

    Yes, the unit supports diesel generator energy input, making it suitable for off-grid or backup energy applications.

    Q :

    5. How does the MPPT configuration benefit large PV arrays?

    A :

    With 3 or 4 MPPTs depending on the model, it optimizes power tracking across multiple orientations or string configurations.

    Q :

    6. What protections are included for safety and compliance?

    A :

    It includes surge protection (Type II), insulation monitoring, arc fault detection, and full compliance with global grid codes.
