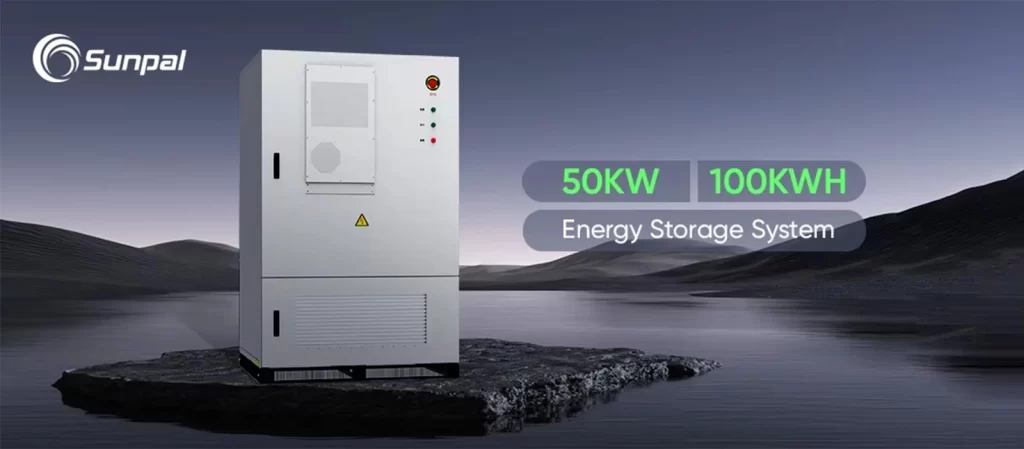

50kW-100kWh Energy Storage System Outdoor Cabinet Battery as Backup

    All-in-one ESS with PV, BESS, EMS
    50kW PCS, 100kWh LFP battery Built-in
    IP54-rated for All-weather Outdoor Use
    Air-cooled, Compact, and Front-access Design
    Real-time LCD Monitoring and Remote Upgrade
    CAN, RS485, Ethernet Smart Communication

Share:

Battery rated capacity100kWh
Battery rated voltage844.8V
Battery voltage range739.2V~950.4V
Battery typeLithium Iron Phosphate battery(LFP)
Battery cell capacity120Ah
Series of Battery1P*24S*11S
Maximum charge and discharge current60A
Photovoltaic rated capacity50kW
Photovoltaic voltage range200~550V
Rated AC power50kW
Rated AC current72A
Rated AC voltage400V,3W+N+PE/3W+PE
Rated AC frequency50/60Hz
THDI<3%(Ratedpower)
Power Factor-1leading to+1lagging
THDU<3%(Linear Load)
Degree of protectionIP54
Protective ClassI
Isolation modeIndustrial Transformer Isolation
Shutdown self-discharge<100W(Without transformer)
DisplayLCD
Relative humidity0 ~ 95%(no condensation)
Noise<78dB
Ambient temperature-25℃ to +60℃(withderating at temperatures above 45℃)
Cooling modeIntelligent air-cooled
Altitude3000m(> 3000m reduction)
Communication interfaceCAN/Ethernet/485
Size(W*D*H)1300*1030*2100mm
Weight(approx.)2150kg

Brief Introdution

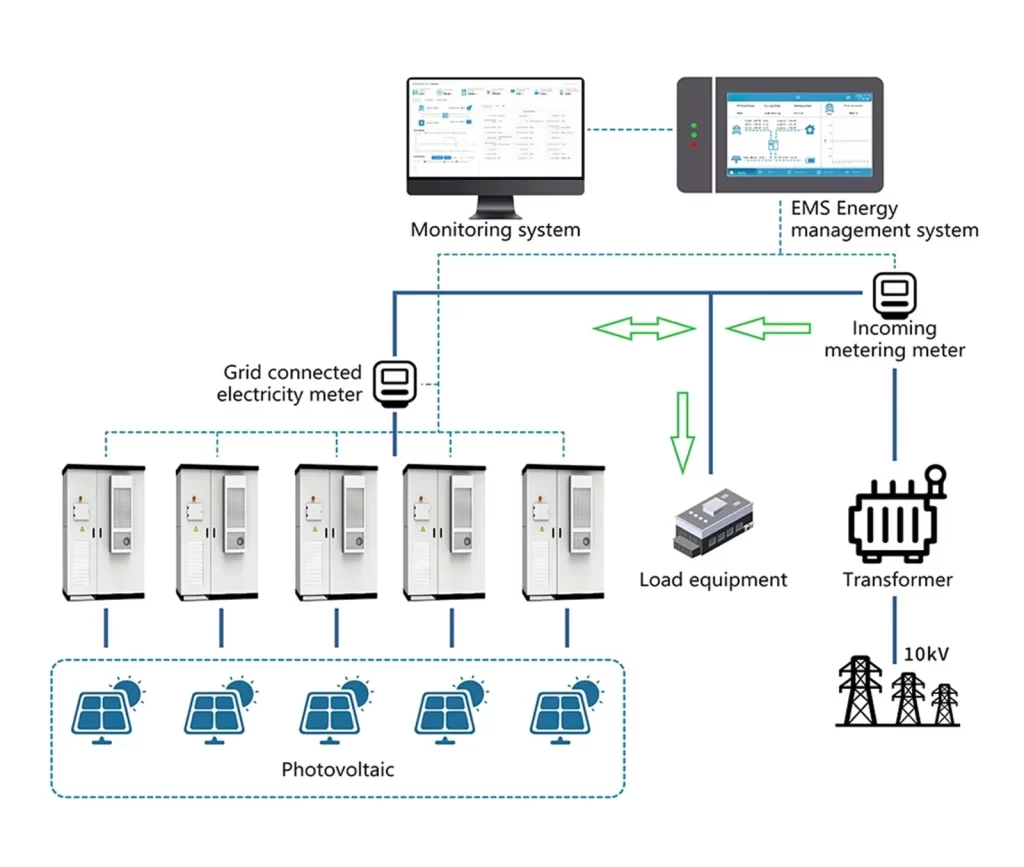

Electrical Connection Diagram

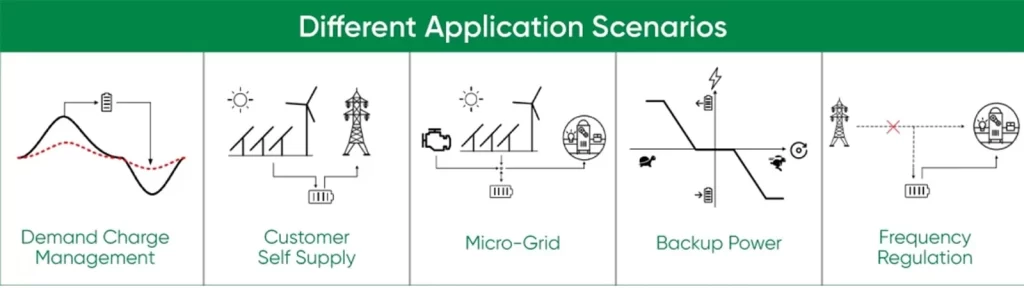

Application Scenarios

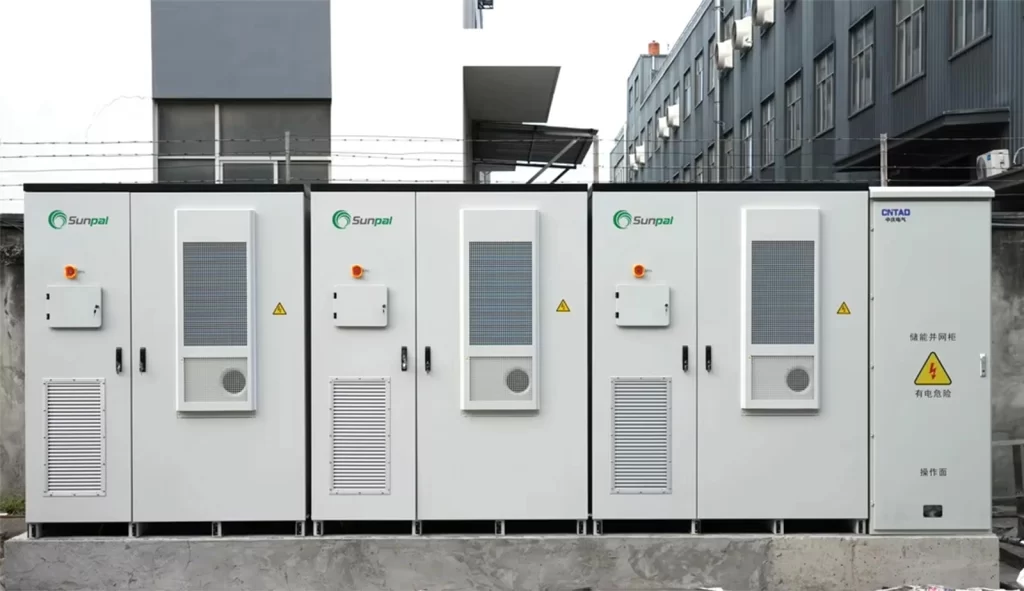

Case Display

Q :

1. What applications is this outdoor ESS cabinet ideal for?

A :

Outdoor ESS cabinet is perfect for commercial PV+storage, peak shaving, off-grid backup, or EV charging support in harsh environments.

Q :

2. What's included inside the integrated cabinet?

A :

The integrated cabinet includes LFP batteries, 50kW PCS, EMS, fire protection, AC/DC distribution, air cooling, and optional transformer.

Q :

3. How is the system installed and maintained?

A :

Front-access maintenance, air-cooled control, and a compact 1.3×1.03m footprint make outdoor installation quick and low-effort.

Q :

4. Is this cabinet suitable for grid-tied and off-grid use?

A :

Yes, outdoor energy storage cabinet supports both modes, with isolated transformer options and flexible power flow strategies.

Q :

5. What are the battery specs and safety features?

A :

Outdoor energy storage cabinet uses LFP cells with 844.8V rated voltage, 739–950V range, and supports fast shut-off, low noise, and smart discharging.

Q :

6. How can I monitor and manage the system?

A :

Outdoor energy storage cabinet features a local LCD screen plus remote EMS access via CAN, Ethernet, and RS485 interfaces.

Q :

7. How much does running a 500 kW electrical load cost?

A :

The cost will depend on a number of factors, including operating duration, utility rate structures, demand charges and additional fees. Please find below calculation methods, examples, and typical ranges for commercial and industrial customers.

kW (kilowatts) = Power (instantaneous consumption rate)

kWh (kilowatt-hours) = Energy (power × time)

Most commercial and industrial electricity bills include demand charges or capacity fees based on peak kW usage (not just billed energy)

Beyond electricity charges, utilities add transmission fees, distribution fees, taxes, and surcharges.

Base Cost Formula

Cost = Load (kW) × Hours Operated × Rate (USD per kWh)

Example: 500 kW equipment operating 10 hours at $0.12/kWh
→ 500 × 10 = 5,000 kWh → Cost = 5,000 × 0.12 = $600

Typical Commercial/Industrial Electricity Rates

Average commercial rates are approximately $0.13/kWh (13.0 cents/kWh) (varies by state/utility)
Lower rates available in some areas (e.g., industrial rates)
Example: Texas commercial rate ~9.14 cents/kWh
Actual effective rates may increase significantly due to demand charges, surcharges, and peak pricing

Examples Including Demand/Longer Duration

Below are energy cost estimates for different usage scenarios:

1. 500 kW running continuously for 1 hour

If operating 1 hour daily at 13 cents/kWh, energy cost alone is 500 × 0.13 = $65. Estimated total cost is approximately $65.

2. 500 kW running continuously for 8 hours

Operating 8 hours daily at the same electricity rate, the energy cost is 500 × 8 × 0.13 = $520. The estimated total cost is approximately $520.

3. 500 kW continuous operation for 24 hours

Operating around the clock, the energy cost is 500 × 24 × 0.13 = $1,560. The estimated total cost is approximately $1,560.

4. 500 kW, continuous operation for 30 days, 24 hours per day

Total operating time is 720 hours, with energy costs alone amounting to 500 × 720 × 0.13 = $46,800.

When factoring in demand charges and other surcharges, the total cost is projected to rise to over $50,000 to $60,000.

Demand charges may increase by 10% to 30% (or higher) depending on peak load, so actual costs in industrial settings may exceed these simplified estimates.

Adjusting for Electricity Price Fluctuations

At an electricity rate of $0.17/kWh (average residential rate):

500 kW × 1 hour = 500 kWh → $85

Calculated at this rate: 8 hours = $680, 24 hours = $2,040, 720 hours (full month) ≈ $61,200
