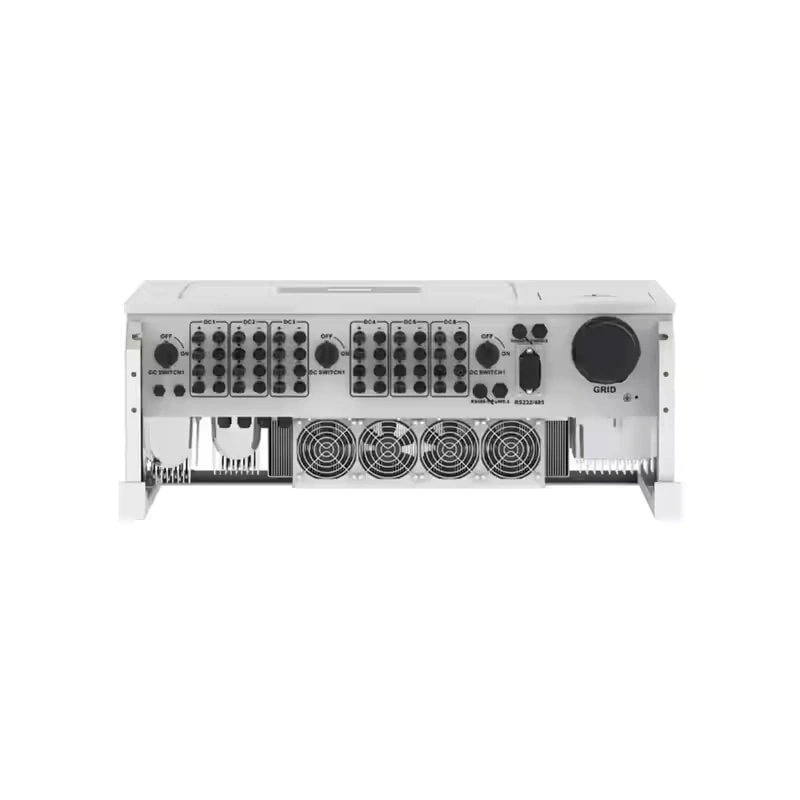

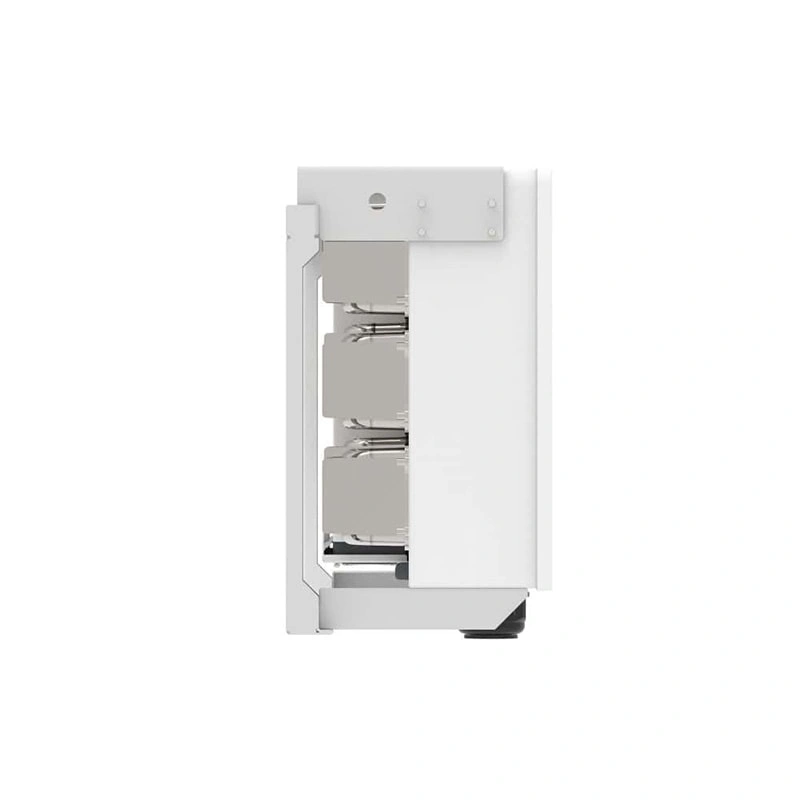

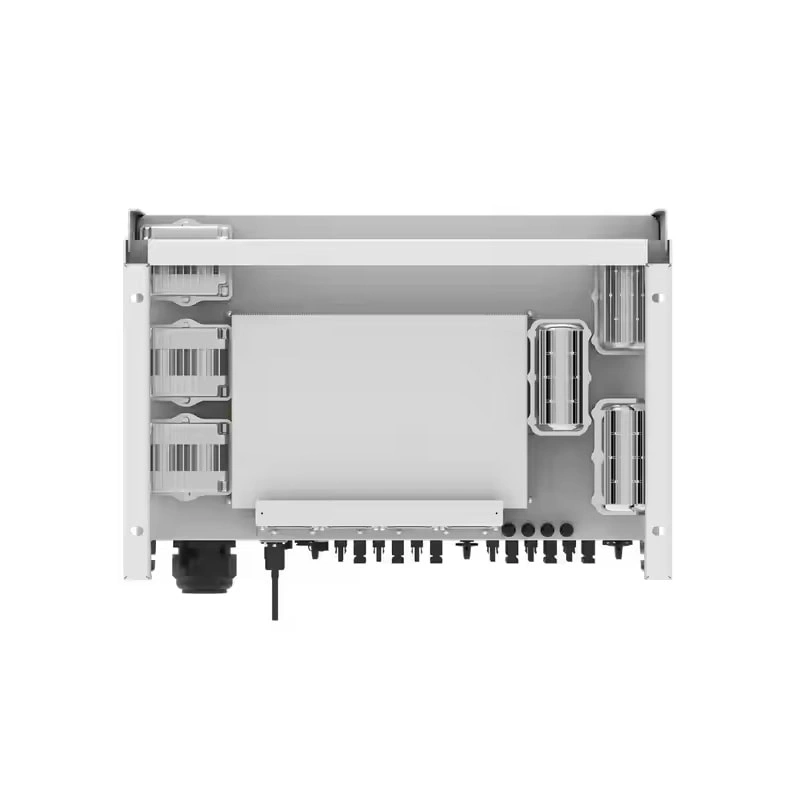

    Deye On-grid 70kW 80kW 100kW 110kW 3 Phase Grid Tie Solar Inverter

      Max Efficiency up to 98.8%, MPPT efficiency >99%, Ensuring Optimal Energy Conversion.
      6 independent MPPT Trackers, Supporting Diverse PV String Configurations
      MPPT Voltage Range 200-850V, Adaptable to Various PV Modules and Shading Conditions.
      Meets IEC 61727, VDE-AR-N 4105, G99, CEI 0-21, and Other International Standards.
      Supports WiFi/LAN/RS485 for Remote Monitoring Via Solarman Platform.
      IP65-rated, Operates in -25°C to 65°C, with Smart Cooling and 5-year Warranty.

    Share:

    Download Inquiry

    Specification

    ModelSUN-70K-G03SUN-75K-G03SUN-80K-G03SUN-90K-G03SUN-100K-G03SUN-110K-G03
    Input Side
    Max. DC Input Power (kW)9197.5104135150150
    Max. DC Input Voltage (V)1000
    Start-up DC Input Voltage (V)250
    MPPT Operating Range (V)200~850
    Max. DC Input Current (A)40+40+40+4040+40+40+40+40+40
    Max. Short Circuit Current (A)60+60+60+6060+60+60+60+60+60
    Number of MPPT / Strings per MPPT4/46/4
    Output Side
    Rated Output Power (kW)70758090100110
    Max. Active Power (kW)7782.58899110121
    Nominal Output Voltage / Range (V)3L/N/PE 380V/323V-418V, 400V/340V-440V
    Rated Grid Frequency (Hz)50 / 60 (Optional)
    Operating PhaseThree phase
    Rated AC Grid Output Current (A)101.5108.7115.9130.4144.9159.4
    Max. AC Output Current (A)111.6119.6127.5143.5159.4175.4
    Output Power Factor0.8 leading to 0.8 lagging
    Grid Current THD<3%
    DC Injection Current (mA)<0.5%
    Grid Frequency Range47~52 or 57~62 (Optional)
    Efficiency
    Max. Efficiency98.7%
    Euro Efficiency98.3%
    MPPT Efficiency>99

    Installation Cases

    Q :

    How does the zero-export function work?

    A :

    Requires an energy meter to limit grid feed-in, ensuring energy is used locally.

    Q :

    What is the warranty and lifespan?

    A :

    5-year warranty, designed for >20 years of operation.

    Q :

    How to monitor system performance?

    A :

    Via Solarman app/platform using WiFi/LAN/RS485, displaying real-time data and faults.

    Q :

    What safety protections are included?

    A :

    DC reverse polarity, AC short-circuit, ground fault, overvoltage/current, and temperature protection.

    Q :

    Can it handle partial shading or different PV orientations?

    A :

    Yes, 6 MPPTs allow independent string optimization.
