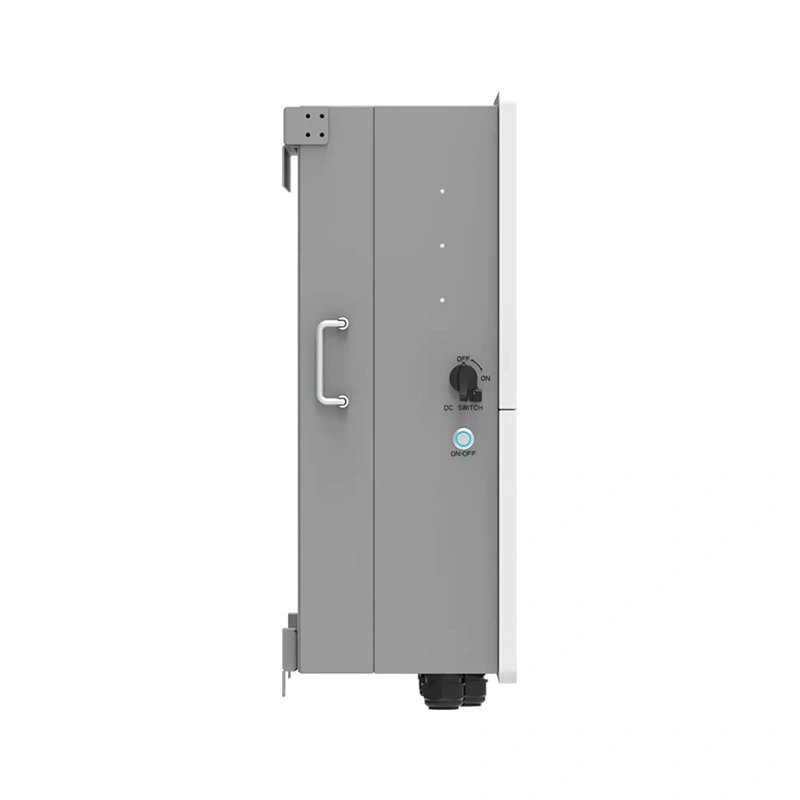

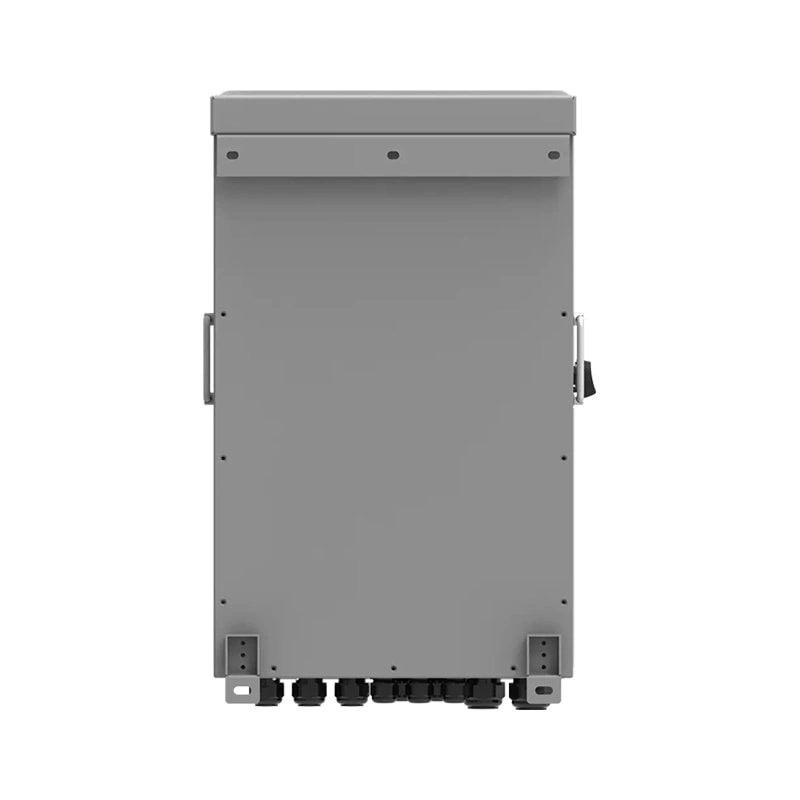

    Deye Hybrid Inverter Single Phase 16kw Low Voltage Stock for Home Use

    • Deye SUN-16K-SG01LP1-EU16KW Single Phase Parallel Inverter
    • Deye Hybrid Inverter Single Phase EU 16kw AC Inverter Solar Energy System
    • Deye Paralleling 16KW Inverter with Multiple MPPT Strings
    • Deye Low Voltage 16KW Inverter For Sale
    • Deye SUN-16K-SG01LP1-EU16KW Single Phase Parallel Inverter
    • Deye Hybrid Inverter Single Phase EU 16kw AC Inverter Solar Energy System
    • Deye Paralleling 16KW Inverter with Multiple MPPT Strings
    • Deye Low Voltage 16KW Inverter For Sale

    Deye Hybrid Inverter Single Phase 16kw Low Voltage Stock for Home Use

      Programmable multiple operation modes: Off grid, on gird and UPS.
      AC/Solar/Generator charger priority is configurable via LCD settings.
      Support WIFI monitoring, support 2 strings of MPP trackers, total 6 strings
      Time of use function and Smart Load Function
      Compatible with mains voltage or generator power

    Share:

    Download Inquiry
    ModelSUN-12K-SG01LP1-EUSUN-14K-SG01LP1-EUSUN-16K-SG01LP1-EU
    Battery Input Data
    Battery TypeLead-acid or Lithium-ion
    Battery Voltage Range (V)40~60
    Max. Charging Current (A)220250290
    Max. Discharging Current (A)220250290
    Charging Curve3 Stages / Equalization
    External Temperature SensorYes
    Charging Strategy for Li-Ion BatterySelf-adaption to BMS
    PV String Input Data156001820020800
    Max. DC Input Voltage (V)500
    Start-up Voltage (V)125
    MPPT Range (V)150~425
    Rated DC Input Voltage (V)370
    PV Input Current (A)26+26+26
    Max. PV ISC (A)44+44+44
    No.of MPPT Trackers3
    No.of Strings Per MPPT Tracker2+2+2
    AC Output Data
    Rated AC Output Active Power (W)120001400016000
    Max AC Output Active Power (W)132001540017600
    Rated AC Output Current (A)54.5/52.263.6/60.972.7/69.6
    Max AC Output Current (A)60/57.470/6780/76.5
    Max. Continuous AC Passthrough (A)100
    Peak Power (off grid)2 times of rated power, 5 S
    Power Factor Adjustment Range0.8 leading to 0.8 lagging
    Power Factor1
    Output Frequency and Voltage50/60Hz; L/N/PE 220/230Vac
    Grid TypeSingle Phase
    Total Harmonic Distortion (THD)<3% (of nominal power)
    DC Current Injection<0.5% 1n
    General Data
    Operating Temperature Range (℃)-45~60℃, >45℃ Derating
    CoolingSmart Cooling
    Noise (dB)≤30 dB
    Communication with BMSRS485; CAN
    Weight (kg)48.5
    Cabinet Size (WxHxD mm)464×763×282 (Excluding Connectors and Brackets)
    Protection DegreeIP65
    Installation StyleWall-mounted
    Warranty5 Years (10 Years Optional)

    Q :

    Is the SUN-16K-SG01LP1-EU inverter capable of parallel operation?

    A :

    Yes, Supports parallel connection of up to 16 units for both: On-grid applications (grid-tied operation), Off-grid applications (island mode operation)

    Q :

    Does it support three-phase power?

    A :

    This model is single-phase, but it supports multiple units in parallel to achieve a three-phase system (master and slave machines need to be configured)

    Q :

    Can it be connected to a diesel generator?

    A :

    Yes, connected through the GEN port, and can be set to automatically start and stop charging.

    Q :

    How to view power generation data?

    A :

    Real-time display of power generation, load, and battery status via LCD screen, or remote monitoring via Wi-Fi module (optional).
