Sunpal 50KW 55KW 60KW High Voltage Three Phase Hybrid Inverter

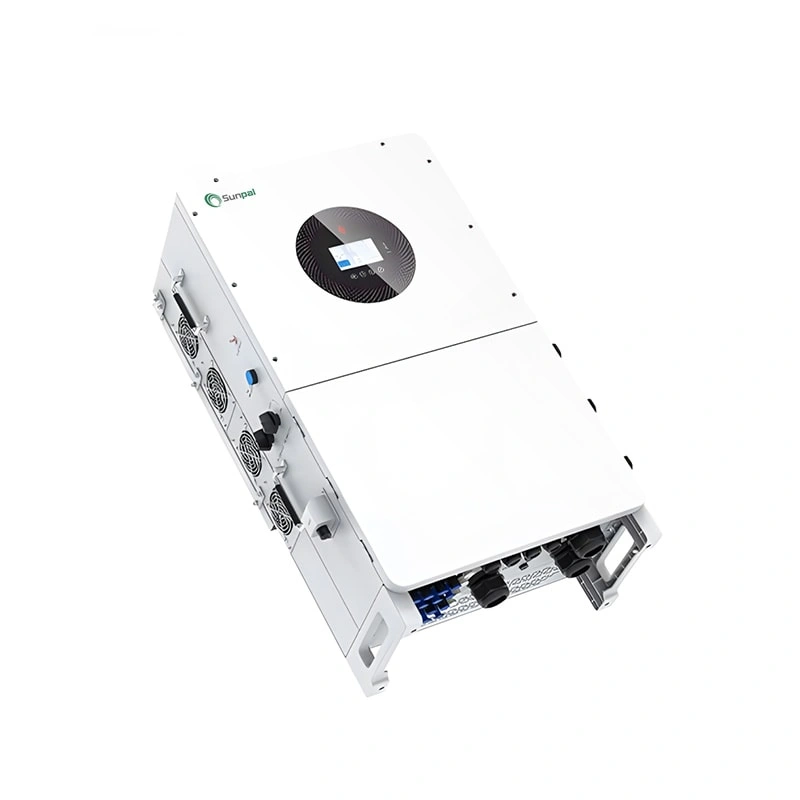

  • High Voltage Three Phase Inverter Supplier

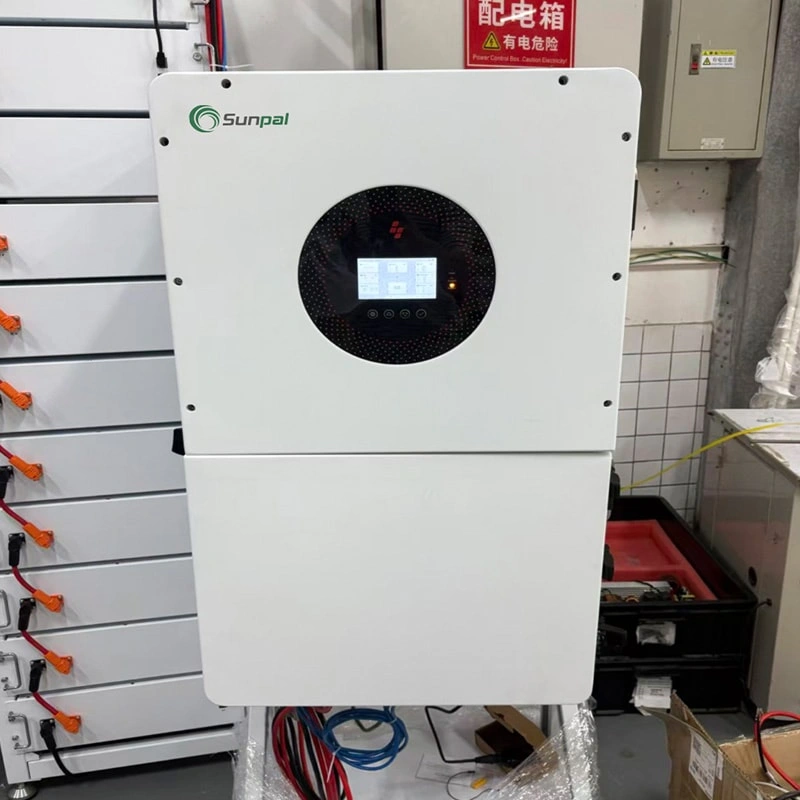

  • Real Picture of 50KW Inverter Supplier
  • High Voltage Three Phase Inverter Supplier
  • Real Picture of 50KW Inverter Supplier

Sunpal 50KW 55KW 60KW High Voltage Three Phase Hybrid Inverter

    4 Independent MPPT Trackers, Compatible With High-power PV Modules
    Ultra-wide Battery Voltage Range(150-820Vdc)
    Battery Charge/Discharge Current 75A*2
    100% Three-phase Unbalanced Load
    Supports Diesel Generator Input
    P65 Waterproof Protection Degree

Share:

Download Inquiry
ModelIESP500SH3IESP550SH3IESP600SH3
Battery Input Data
Battery TypeLithium-ion
Battery Voltage Range (V)150-820V
Max. Charging/Discharging Current150A(75A+75A)
Number of Battery Input2
PV String Input Data
Max. PV Access Power100KW110KW120KW
Rated PV Input Voltage600vdc
Max. PV Input Voltage1000vdc
Start-up Voltage160vdc
Max. PV Input Current40A*4
Max. Short-circuit Current60A*4
MPPT Operating Voltage Range150-850vdc
No.of MPPT Trackers4
AC Output Data
Rated AC OutputPower (W)50000W55000W60000W
AC Output Rated Current (A)75.983.691.2
Power Factor0.8 leading to 0.8 lagging
THDI<3% (of nominal power)
Output Frequency and Voltage50/60Hz; L/N/PE 220/380Vac (three phase)
Switch Time10ms (typical value)
WaveformPure sine wave
Efficiency
Max. Efficiency98.10%
Euro Efficiency97.60%
MPPT Efficiency99%
CertificationsEN50549,VDE4105,IEC62109-1,EC62109-2,EN61000-6-1,EN61000-6-3,FCC 15 class B
General Data
Operating Temperature Range (℃)-40 to +60'C,
45'C Derate
CoolingHeat sink +intelligent fan cooling
Noise (dB)<65 dB
Communication with BMSRS485/CAN/USB /Dry Contact
Weight (kg)98
Size (mm)622x342x1010mm
Protection DegreeIP65
Installation StyleWall-mounted
Warranty5 years
Wifi Function of Inverter
Why Choose Us

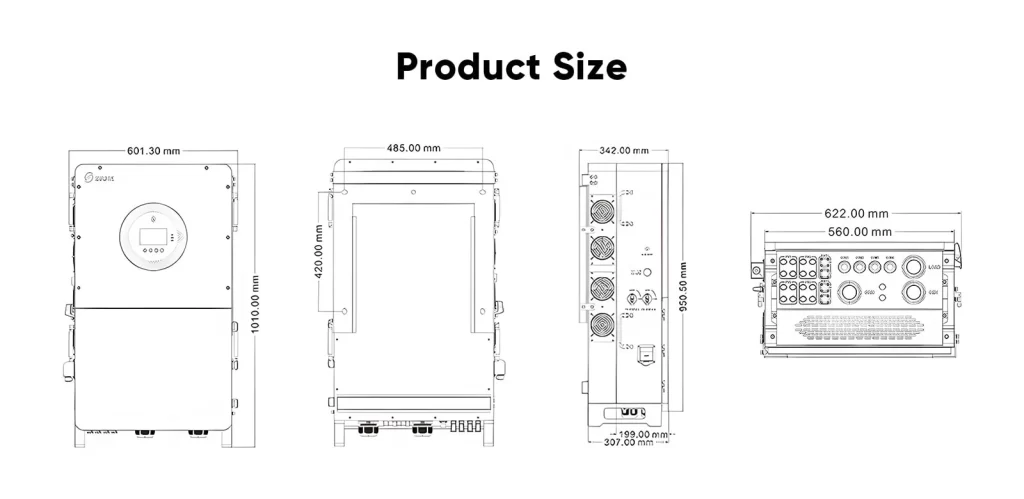

Product Size

Q :

What battery can be used for this inverter?

A :

High voltage lithium battery is needed.

Q :

Inverters are suitable for which countries?

A :

It's EU version, three phase, suitable for almost countries using 220/380V

Q :

Can I connect to diesel generators?

A :

Yes, it supports diesel generator input.

Q :

Will the inverter still working even no grid power?

A :

Yes, it's hybrid inverter, with both on grid and off grid function

Q :

For a business with a daily energy consumption of 50 kWh, what battery capacity is recommended?

A :

In order to ascertain the most suitable battery size for your business, please consider the following factors:

Required Backup Duration

Assess how many days your business needs to operate without grid power.

For instance:

1-day autonomy: 50 kWh × 1 = 50 kWh
2-day autonomy: 50 kWh × 2 = 100 kWh
3-day autonomy: 50 kWh × 3 = 150 kWh

Depth of Discharge (DoD)

To prolong battery life, avoid discharging below a certain percentage.

For example, with a 90% DoD:

1-day capacity: 50 kWh ÷ 0.9 ≈ 56 kWh
2-day capacity: 100 kWh ÷ 0.9 ≈ 111 kWh
3-day capacity: 150 kWh ÷ 0.9 ≈ 167 kWh

System Efficiency

Account for energy losses during conversion and storage.

Assuming 85% efficiency:

1-day requirement: 56 kWh ÷ 0.85 ≈ 66 kWh
2-day requirement: 111 kWh ÷ 0.85 ≈ 130 kWh
3-day requirement: 167 kWh ÷ 0.85 ≈ 196 kWh

Recommended Battery Capacity

Based on the above factors, a battery system with a capacity between 66 kWh and 196 kWh is suitable, depending on your backup duration and system specifications.

Considerations for Businesses

Battery Type: Lithium-ion batteries are preferred for their efficiency and longevity.

Integration with Solar: If integrating with solar panels, ensure the system efficiently charges the batteries.

Budget: Costs vary; for example, a 136 kWh system may cost approximately $54,400.

Regulatory Compliance: Ensure the system complies with local regulations and standards.

Scalability: Consider future energy needs and choose a system that can be easily scaled.
