*Specification
| Product Description | |||||||||||
| Product Model | M16S280BL-F | ||||||||||
| Cells In Series | 16S | ||||||||||
| Rated Energy (KWh) | 14.3 | ||||||||||
| Rated Voltage (V) | 51.2 | ||||||||||
| Charging Voltage (V) | 58.4 | ||||||||||
| Discharge Cut-off Voltage (V) | 42 | ||||||||||
| Standard Charge Current (A) | 50 | ||||||||||
| Maximum Charging Current (A) | 100 | ||||||||||
| Maximum Discharge Current (A) | 100 | ||||||||||
| Features | |||||||||||
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C | ||||||||||
| Methods Of Communication | RS232/RS485/CAN | ||||||||||
| Charging Temperature | 0~60℃ | ||||||||||
| Discharge Temperature | -10~65℃ | ||||||||||
| How It Is Displayed | LCD display | ||||||||||
| IP Protection | IP 21 | ||||||||||
| Conventional | |||||||||||
| Product Dimensions (L×W×Hmm) | 580×280×800 | ||||||||||
| Net Weight (Kg) | 124.2 | ||||||||||
| Packing Dimensions (L×W×Hmm) | 700×495×900 | ||||||||||
| Gross Weight (Kg) | 142.7 | ||||||||||

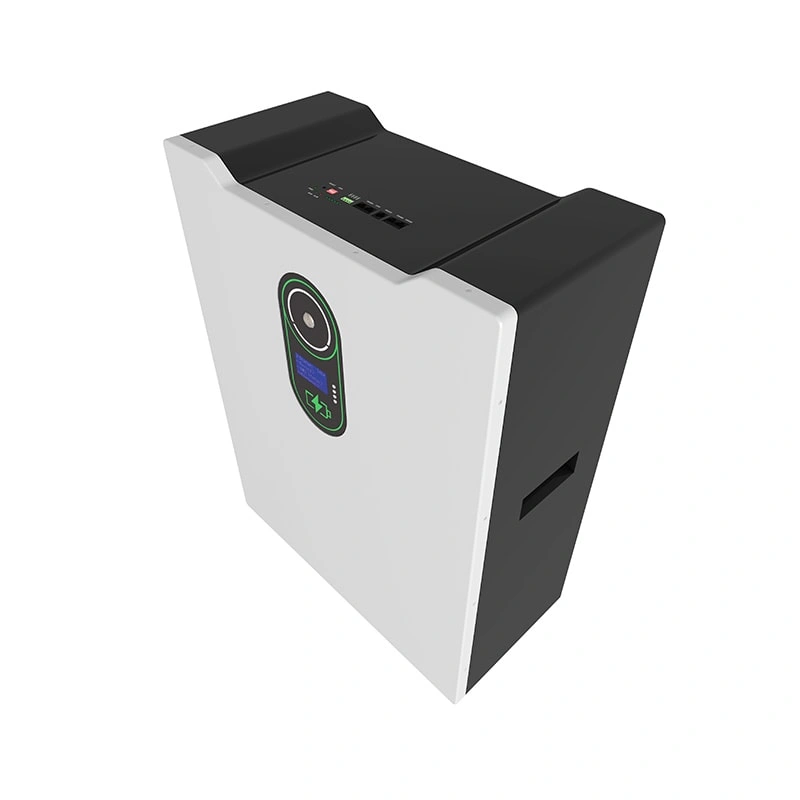

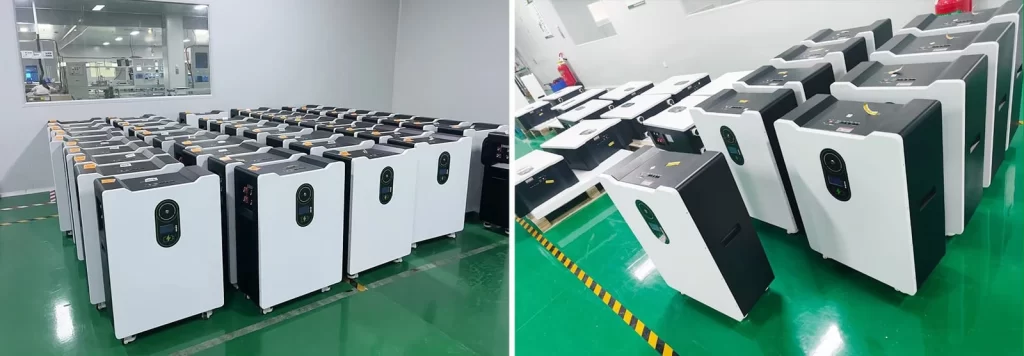

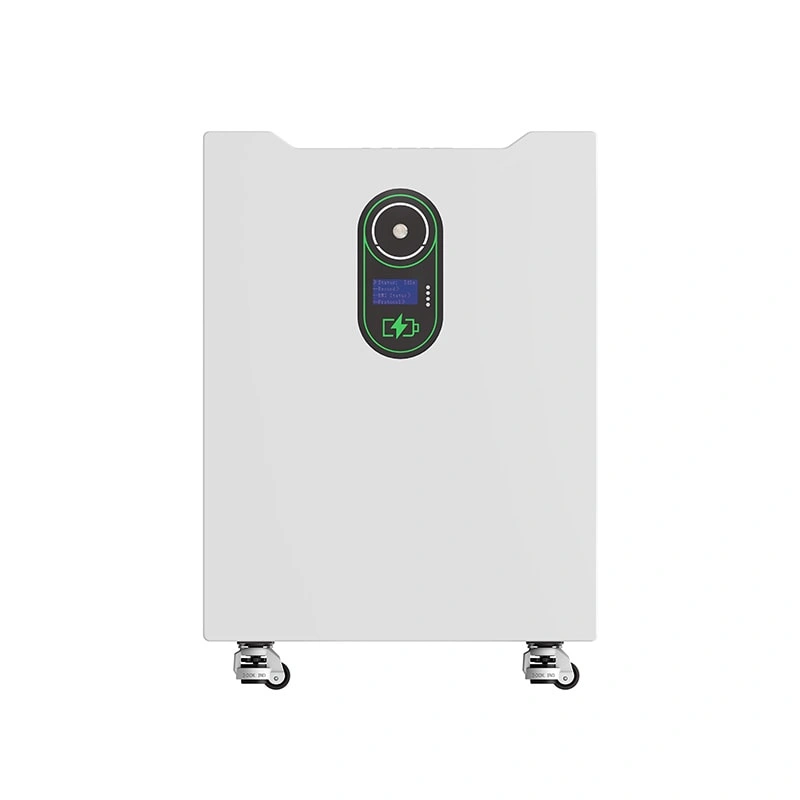

*Product Display
